In the realm of high-performance industrial sealing solutions, few materials have a history and a set of properties as distinctive as Dusted Asbestos. At Kaxite Seals, we specialize in engineering and supplying premium-grade asbestos-based sealing products that meet the most demanding applications. This technical dossier provides an in-depth look at Dusted Asbestos, its specifications, and its appropriate use cases, underscoring our commitment to safety, performance, and technical excellence. Our formulations are designed for legacy equipment and specific high-temperature industrial processes where modern substitutes may not perform adequately, always with the utmost adherence to safety protocols and regulations.
Dusted Asbestos refers to a processed form where asbestos fibers are finely milled and often combined with specific binding agents or rubbers to create a cohesive, pliable sealing material. The "dusted" terminology historically denotes its preparation and dry, fibrous consistency before being formed into sheets, gaskets, or rope. Kaxite Seals' proprietary manufacturing process ensures a consistent fiber distribution and controlled density, resulting in predictable performance characteristics crucial for reliable sealing.
The efficacy of Dusted Asbestos as a sealing medium stems from its inherent natural properties, which we meticulously optimize and control in our production facilities.
Kaxite Seals offers Dusted Asbestos in several standardized forms, each tailored for specific application methods and performance requirements. Below are the detailed technical parameters for our flagship product lines.
| Parameter | Standard Grade (KA-ASB-1) | High-Density Grade (KA-ASB-2) | Rubber-Impregnated Grade (KA-ASB-3) |
|---|---|---|---|
| Thickness Range | 1/64" to 1/8" (0.4mm to 3.2mm) | 1/32" to 1/4" (0.8mm to 6.4mm) | 1/32" to 3/16" (0.8mm to 4.8mm) |
| Standard Sheet Size | 60" x 60" (1524mm x 1524mm) | 48" x 48" (1219mm x 1219mm) | 60" x 60" (1524mm x 1524mm) |
| Density | 75 - 85 lbs/ft³ (1200 - 1360 kg/m³) | 90 - 100 lbs/ft³ (1440 - 1600 kg/m³) | 80 - 90 lbs/ft³ (1280 - 1440 kg/m³) |
| Max Continuous Temp. | 1000°F (538°C) | 1100°F (593°C) | 750°F (399°C) |
| Tensile Strength | 1200 - 1500 psi | 1800 - 2200 psi | 2000 - 2500 psi |
| Compression Set (% max) | 50% | 45% | 40% |
| Primary Binder/Additive | Minimal Inorganic Binder | High-Temp Inorganic Binder | Nitrile Rubber (NBR) Compound |
| Typical Applications | Boiler manways, furnace casings, heat exchangers | High-pressure steam joints, turbine casings | Flange gaskets for oil, fuel, and chemical services |
| Diameter / Size | Density | Packing | Temperature Range | Common Use |
|---|---|---|---|---|
| 1/8" to 2" (3mm to 50mm) | 70 - 80 lbs/ft³ | Coils or Spools | Up to 1200°F (649°C) intermittent | Valve stem packing, oven door seals |
| Square Braid: 1/4", 3/8", 1/2" | 85 - 95 lbs/ft³ | 100 ft Coils | Up to 1000°F (538°C) | Pump packing, expansion joint sealing |
| Twisted Cord: 3/16", 1/4" | 65 - 75 lbs/ft³ | 50 lb Spools | Up to 900°F (482°C) | General purpose caulking, winding for joints |
Q: Is it still legal and safe to use Dusted Asbestos from Kaxite Seals in industrial applications?
A: Yes, in many jurisdictions, the use of asbestos-containing materials (ACMs) in specific, critically important industrial applications remains legally permissible under strict regulatory frameworks. Kaxite Seals operates in full compliance with all local and international regulations, including OSHA, EPA, and REACH guidelines where applicable. Our products are intended for controlled industrial use in settings like power generation, chemical processing, and heavy manufacturing, where extreme temperatures or corrosive media make alternatives unsuitable. Safety is paramount; we provide comprehensive Material Safety Data Sheets (MSDS) and mandate that end-users follow all recommended handling, installation, and disposal protocols to mitigate any health risks.
Q: What are the primary advantages of choosing Kaxite Seals' Dusted Asbestos over modern synthetic fiber gaskets?
A: The primary advantages lie in unmatched performance under extreme conditions. While synthetic aramid or ceramic fibers are excellent for many applications, Kaxite Seals' Dusted Asbestos offers superior thermal stability above 750°F (399°C), better conformability to imperfect flange surfaces, and a proven long-term seal under thermal cycling that can cause some synthetics to relax and leak. For legacy equipment designed with asbestos gaskets, using our certified material often ensures optimal sealing performance and longevity that direct synthetic replacements cannot guarantee, preventing costly downtime and leaks.
Q: How should I properly handle and install Dusted Asbestos gaskets or packing?
A: Proper handling is critical. Always use appropriate Personal Protective Equipment (PPE), including a NIOSH-approved respirator (P100 filter), gloves, and protective clothing. Work in a well-ventilated area or use local exhaust ventilation. For installation, cut gaskets using sharp tools and wet methods (e.g., a water-lubricated cutter) to minimize airborne dust. Never dry sand or grind the material. When installing packing, wind it neatly into the stuffing box without over-tightening. After installation, clean the work area thoroughly with a HEPA-filtered vacuum—never use dry sweeping or compressed air.
Q: Does Kaxite Seals offer any asbestos-free alternatives for similar applications?
A: Absolutely. Kaxite Seals is a full-line sealing solutions provider. While we are experts in high-performance asbestos-based products for niche applications, we also manufacture an extensive range of asbestos-free alternatives. These include high-temperature graphite gaskets, ceramic fiber ropes and papers, aramid fiber sheets, and compressed non-asbestos fiber (CNAF) gaskets suitable for many industrial services. Our technical team can help you select the optimal material based on your specific temperature, pressure, and chemical service requirements.
Q: What is the shelf life and proper storage method for Dusted Asbestos products?
A: When stored correctly, Kaxite Seals' Dusted Asbestos products have an exceptionally long shelf life. Store materials in their original, sealed packaging in a cool, dry, and well-ventilated warehouse. Protect them from direct sunlight, moisture, and extreme temperature fluctuations. Avoid stacking heavy items on top of sheet stock to prevent deformation. Under these conditions, the material will retain its mechanical and sealing properties for many years. Always inspect the product for damage or moisture contamination before use.
Q: Can Dusted Asbestos be used for sealing in food, pharmaceutical, or potable water applications?
A: No. Kaxite Seals' Dusted Asbestos products are strictly NOT approved or recommended for use in applications involving direct contact with food, pharmaceuticals, or potable water. These sectors have stringent health and material purity regulations. For such applications, we recommend our FDA-compliant, non-toxic sealing materials such as specific grades of PTFE, silicone, or compressed non-asbestos sheets that are designed and certified for sanitary service.
Kaxite Seals provides both standardized and fully customized Dusted Asbestos solutions. Our technical sales team can assist with specifications for die-cut gaskets, custom-formed rope shapes, or sheets with specific reinforcement layers. We require detailed application parameters—including media, temperature, pressure (PSI), flange type/surface finish, and chemical exposure—to recommend the optimal grade and form. All custom orders are manufactured to precise drawings and specifications, ensuring a perfect fit and reliable performance in your critical application.

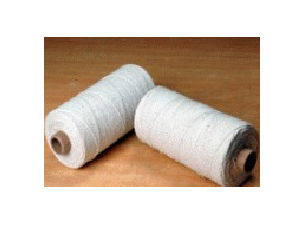

Discover Kaxite's Dusted Asbestos Yarn for industrial applications, offering unmatched durability and heat resistance. Ideal for construction and automotive sectors, it ensures safety and efficiency, solving wear-and-tear issues. Stand out with superior quality and tailored solutions—choose Kaxite for reliability today.

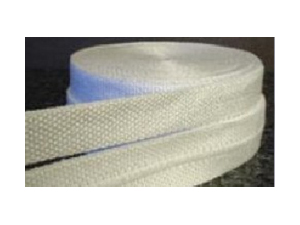

Read MoreSend InquiryDiscover Kaxite's Dusted Asbestos Tapes, designed for reliable sealing and insulation in industrial and DIY projects. Crafted from durable asbestos-based materials, they offer exceptional heat resistance and longevity, perfect for professionals and hobbyists in high-temperature environments like plumbing or HVAC. Experience peace of mind knowing these tapes provide a secure, long-lasting solution, outperforming standard options with their superior dusted finish for enhanced adhesion. Trust Kaxite for quality that protects and endures—upgrade your toolkit today.
Read MoreSend InquiryKaxite's Dusted Asbestos Rope offers superior heat and fire resistance for industrial applications, crafted with durable materials to ensure safety and reliability in demanding environments. Ideal for professionals in construction and manufacturing, this rope provides peace of mind by enhancing operational efficiency and reducing risks. Its unique dusted finish sets it apart from competitors, delivering unmatched performance and durability. Discover how Kaxite's innovation can elevate your projects today!
Read MoreSend InquiryDiscover Kaxite's Dusted Asbestos Cloth – a premium, durable solution for high-heat insulation and protection in industrial settings. Made from high-quality asbestos fibers, it offers unmatched fire resistance and long-lasting performance, ideal for professionals in construction, manufacturing, and safety operations. Experience peace of mind and enhanced safety, knowing you're using a reliable product that stands out with its superior quality and trusted brand. Upgrade your toolkit today for safer, more efficient work!
Read MoreSend Inquiry
