Flange Insulation Gasket Kits, also known as isolation gasket kits or insulating flange kits, are critical components designed to prevent galvanic corrosion, reduce electrical continuity, and manage stray currents in piping systems. These kits are essential for industries such as oil & gas, chemical processing, water treatment, and marine, where dissimilar metals are joined, or where cathodic protection systems are in place. By installing a complete insulation barrier at the flange connection, these kits protect infrastructure integrity, enhance safety, and significantly extend the service life of pipelines and equipment. Kaxite Seals specializes in engineering high-performance, reliable Flange Insulation Gasket Kits tailored to meet stringent industrial standards and specific application challenges.

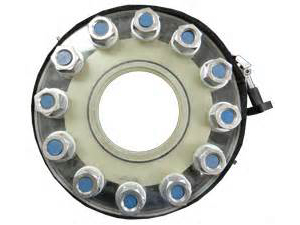

Core Components of a Flange Insulation Gasket Kit

A standard, high-quality flange insulation kit from Kaxite Seals is not just a single gasket; it is a comprehensive system. Each kit typically includes all necessary elements to fully isolate a flanged joint.

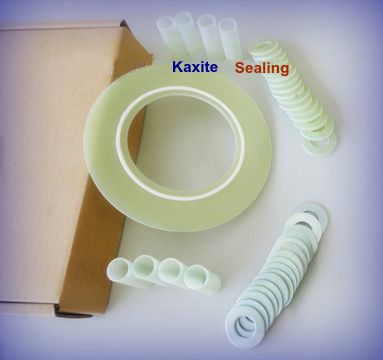

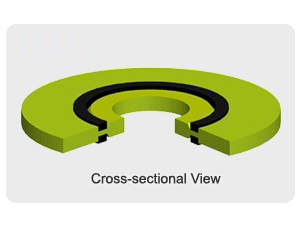

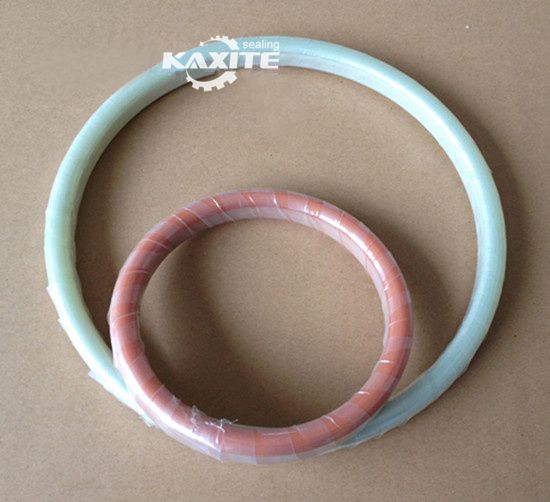

• Insulating Gasket: The primary barrier, made from durable dielectric materials like PTFE (Teflon), phenolic resin, or composite laminates.
• Insulating Washers/Sleeves: Bushings that isolate the bolt from the flange hole, preventing electrical contact through fasteners.
• Insulating Washers: Placed under the bolt head and nut to prevent contact with the flanges.
• Steel Washers: Used on the outer sides of the insulating washers to distribute load and prevent damage during torque application.
• High-Strength Bolts & Nuts: Often included to ensure proper clamping force with the insulation components.
• Alignment Pins (Optional): For easier assembly and proper gasket alignment.

Detailed Product Parameters & Specifications

Kaxite Seals kits are manufactured to precise specifications. Key parameters defining our product line are detailed below.

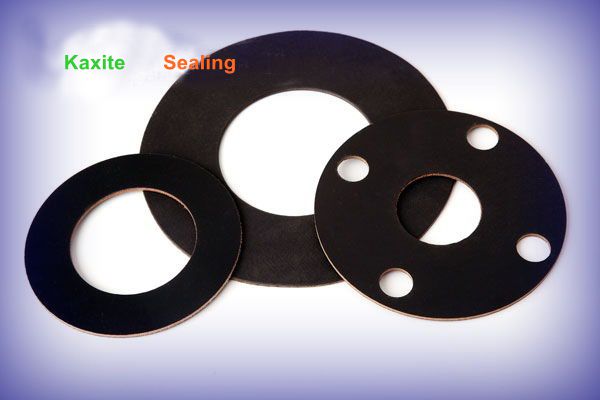

1. Material Specifications

The choice of insulating material is paramount for performance under specific pressure, temperature, and chemical conditions.

*Varies significantly with specific material grade and fillers.

2. Pressure & Size Ratings

Kaxite Seals kits are designed to match the pressure class and dimensions of the flanges they insulate.

3. Electrical & Performance Specifications

The core function is electrical isolation, measured by key metrics.

• Dielectric Strength: Typically exceeds 500 V/mil (20 kV/mm) for gasket materials.
• Surface Resistivity: >1 x 10¹² ohms, ensuring minimal surface leakage current.
• Volume Resistivity: >1 x 10¹³ ohm-cm, providing excellent bulk insulation.
• Compressive Strength: Material-specific, ensuring the gasket maintains seal under bolt load without crushing (e.g., Phenolic: ~30,000 psi).
• Creep Relaxation Resistance: Critical for maintaining bolt load and seal integrity over time; Kaxite materials are selected for low creep.

Frequently Asked Questions (FAQ) on Flange Insulation Gasket Kits

Q: When is a Flange Insulation Gasket Kit required?
A: A kit is essential in several scenarios: 1) When connecting pipes or equipment made of dissimilar metals (e.g., carbon steel to stainless steel) to prevent galvanic corrosion. 2) In pipelines with cathodic protection systems, to isolate protected sections and focus the protection current. 3) To mitigate damage from stray electrical currents, often found in plants, near railways, or in marine environments. 4) For safety in hazardous areas where spark prevention is crucial.

Q: Can I just use an insulating gasket without the full kit of washers and sleeves?
A: No, this is a common and critical mistake. Using only the gasket does not provide complete isolation. The bolts act as a parallel electrical path, short-circuiting the insulation. The full Kaxite Seals kit includes insulating sleeves and washers to break this metallic circuit at every potential contact point, ensuring 100% effective isolation.

Q: How do I select the right material for my application?
A: Selection depends on three primary factors: Temperature, Pressure, and Chemical Media. For high-temperature, high-pressure hydrocarbon services, phenolic (GPO) or advanced composites are standard. For highly corrosive chemicals (acids, caustics) at moderate temperatures, PTFE is preferred. Always consult the Kaxite Seals engineering team with your specific service conditions (fluid, max/min temperature, pressure) for a definitive recommendation.

Q: What is the correct installation procedure for these kits?
A: Proper installation is key to performance. 1) Ensure flange faces are clean, smooth, and undamaged. 2) Insert insulating sleeves into the aligned flange bolt holes. 3) Place the insulating gasket between the flanges. 4) Assemble bolts with insulating washers under the head and steel washer/nut side. 5) Tighten bolts in a star-pattern (cross-torquing) to the specified torque value in multiple passes to ensure even compression and prevent gasket damage. Never use impact wrenches. Kaxite provides detailed installation guides with each kit.

Q: How can I verify the insulation is working after installation?
A: Insulation resistance should be verified post-installation. Using a standard multimeter (ohmmeter) on a high resistance scale, measure the resistance between the two flanges, and between each flange and its bolts. A reading in the mega-ohm (MΩ) or giga-ohm (GΩ) range indicates good isolation. Regular inspection and resistance checks are part of a good maintenance program.

Q: Are Kaxite Seals kits compliant with industry standards?
A> Yes, Kaxite Seals designs and manufactures kits in compliance with major international standards, including but not limited to:

• ASME B16.5 (Pipe Flanges and Flanged Fittings)
• ASTM F117 (Standard Specification for Insulated Gaskets)
• NACE MR0175/ISO 15156 (Materials for use in H2S-containing environments)
• Customer-specific specifications from major oil & gas and engineering companies.

Q: Can you supply kits for non-standard or large diameter flanges?
A: Absolutely. A key strength of Kaxite Seals is our ability to engineer and fabricate custom insulation kits for special applications. This includes large diameters (over 24"), non-standard bolt circle diameters, raised face (RF), flat face (FF), and ring-type joint (RTJ) flanges, and for extreme pressure classes (Class 1500, 2500). We work from customer drawings or on-site measurements.

Q: What is the expected service life of a properly installed kit?
A> The service life is highly dependent on the operating environment. Under correct conditions (within temperature/pressure limits, correct chemical compatibility), a Kaxite Seals kit can last the entire planned maintenance cycle of a plant, often 10-20 years or more. Factors that reduce life include excessive temperature cycling, exposure to UV radiation (for certain polymers), mechanical damage, or use outside design parameters. Regular inspection is advised.
