High-Quality Graphite Packing Supplier in China for Sale

What is Graphite Packing?

In demanding industrial sealing applications, reliability and longevity are non-negotiable. Graphite packing, a high-performance sealing material, stands as a cornerstone technology for controlling leaks and ensuring operational safety in pumps, valves, agitators, and other rotary or reciprocating equipment. Unlike traditional braided packings, modern graphite packing is engineered from pure, high-quality graphite filaments or flakes, offering exceptional thermal stability, chemical resistance, and self-lubricating properties. At Kaxite Seals, we have refined the manufacture of graphite packing to create solutions that meet the most rigorous standards, providing a robust seal that reduces maintenance downtime and total cost of ownership.

Why Choose Kaxite Seals Graphite Packing?

Selecting the correct sealing material is critical for plant efficiency and safety. Kaxite Seals graphite packing is designed for superior performance in extreme conditions. Our products excel in applications involving high temperatures, aggressive media, and dynamic equipment where other materials fail. The inherent flexibility of graphite allows it to conform perfectly to shaft or stem surfaces, creating an effective seal with minimal friction. This leads to extended seal life, reduced power consumption, and less wear on equipment. We utilize advanced manufacturing techniques to ensure consistent density and purity, guaranteeing that every spool of Kaxite Seals graphite packing delivers predictable, reliable performance.

Detailed Product Specifications & Parameters

Understanding the technical specifications of graphite packing is essential for proper selection. Below are the key parameters that define the performance characteristics of Kaxite Seals graphite packing range.

Material Composition & Properties

• Base Material: 99.5% Pure Expanded Graphite (Flexible Graphite)

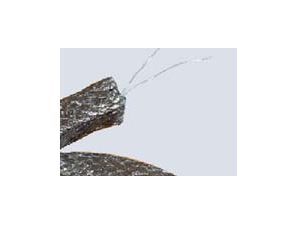

• Reinforcement: Inconel 601, 304/316 Stainless Steel, or Monel wire insert (for spiral-wound styles). Can also be reinforced with carbon or glass fiber for specific grades.
• Temperature Range: -240°C to 600°C (-400°F to 1112°F) in oxidizing atmospheres; up to 3000°C (5432°F) in non-oxidizing/inert environments.
• pH Range: 0-14 (Excellent resistance to most acids, alkalis, solvents, and organics).
• Thermal Conductivity: High, facilitating heat dissipation from the shaft.
• Density: 1.1 - 1.7 g/cm³ (variable by product style and compression).
• Compressibility: 40% - 60%
• Recovery: 15% - 30%

Standard Product Types & Dimensions

Performance Data Table

Graphite Packing FAQ (Frequently Asked Questions)

Q: What are the main advantages of graphite packing over traditional asbestos or PTFE packings?

A: Graphite packing offers several key advantages. First, it has a much wider temperature range, handling extreme heat where PTFE degrades and cold where other materials become brittle. Second, its chemical resistance is broader, effectively handling strong acids, alkalis, and solvents. Third, graphite is self-lubricating, reducing friction and shaft wear without needing external lubricants, which can contaminate process fluids. Finally, it has superior thermal conductivity, which helps dissipate frictional heat, prolonging both packing and equipment life.

Q: How do I select the correct graphite packing size and style for my application?

A: Selection depends on four primary factors: Equipment Type (pump, valve, agitator), Operating Conditions (temperature, pressure, media), Shaft/Stem Diameter, and Stuffing Box Dimensions. The cross-section of the packing is typically chosen to be approximately 1/8th of the shaft diameter. For high-speed pumps, a braided style like KX-GP200 provides strength. For high-temperature valves, a spiral-wound coil like KX-GP300 is ideal. Our Kaxite Seals engineering team provides detailed selection guides and technical support to ensure optimal fit and performance.

Q: Is graphite packing suitable for potable water or food-grade applications?

A: Yes, but specific grades must be selected. Pure, reinforced expanded graphite without any metal additives (like certain KX-GP100 series) is generally considered inert and safe. For food and pharmaceutical applications, it is crucial to choose a grade that is NSF/ANSI 61 certified or complies with FDA regulations CFR 21. Kaxite Seals offers certified grades that meet these stringent hygiene standards, ensuring no contamination of the process stream.

Q: How should graphite packing be installed for maximum life and effectiveness?

A: Proper installation is critical. Clean the stuffing box thoroughly. Use pre-formed die-cut rings whenever possible for consistency. Stagger ring joints by 90 degrees with each subsequent ring. For coil packing, wrap it neatly around the shaft and cut precisely, then stagger the joints. Follow the manufacturer's torque specifications during gland follower tightening—avoid over-tightening. It is often recommended to tighten the gland finger-tight, run the equipment to warm and seat the packing, and then make a final adjustment. Refer to the Kaxite Seals installation manual for detailed, step-by-step procedures.

Q: Can graphite packing be used in highly abrasive services, such as slurries?

A: Pure graphite is relatively soft and can be vulnerable to severe abrasion. For abrasive services, Kaxite Seals offers specially compounded graphite packings. These are reinforced with advanced synthetic fibers or include inert solid lubricants like tungsten disulfide that enhance wear resistance. Models like our KX-GP400 series are designed with a layered construction that provides a resilient, abrasion-resistant seal suitable for slurry pumps and mixers handling particulate-laden fluids.

Q: How does the presence of steam or oxygen at high temperatures affect graphite packing?

A: In continuous dry air or steam service above approximately 450°C (842°F), pure graphite can begin to oxidize, leading to gradual mass loss and reduced sealing force. For these demanding oxidizing environments, Kaxite Seals produces high-temperature grades with oxidation inhibitors impregnated into the graphite structure. Additionally, our spiral-wound styles with Inconel reinforcement (KX-GP300) provide a protective metallic barrier that significantly extends service life in such conditions.

Q: What is the typical expected service life of graphite packing?

A: Service life varies dramatically based on application conditions: speed (RPM or cycles), pressure, temperature, media, and installation quality. Under moderate conditions in a water pump, graphite packing can last 1-3 years. In a high-temperature valve cycling frequently, life might be 6-18 months. With optimal selection, installation, and adjustment, Kaxite Seals graphite packing consistently outperforms conventional materials, often providing 2-5 times longer service intervals, which dramatically reduces maintenance costs and downtime.
