Mica Sheet Manufacturer in China

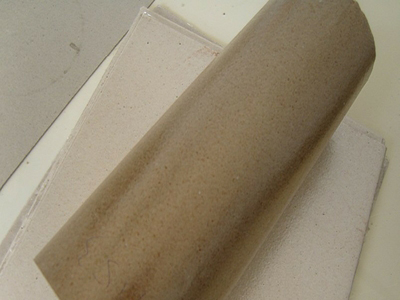

Mica Sheet: The High-Performance Insulation and Thermal Management Solution

In the demanding world of industrial manufacturing, electrical engineering, and high-temperature applications, finding a reliable material that combines exceptional dielectric strength, thermal stability, and mechanical integrity is paramount. Mica Sheet stands out as a naturally occurring mineral-based product that has been engineered to meet these rigorous challenges. As a leading innovator in high-performance sealing and insulation materials, Kaxite Seals specializes in providing premium-grade mica sheets that deliver unparalleled performance and longevity in critical applications.

Mica, a silicate mineral known for its perfect basal cleavage, is processed into thin, flexible sheets that retain the mineral's inherent superior properties. Kaxite Seals' mica sheets are manufactured through a controlled process that ensures consistency, purity, and performance, making them an indispensable component in sectors ranging from aerospace and automotive to household appliances and industrial heating.

Key Properties and Advantages of Kaxite Seals Mica Sheets

The widespread use of mica sheets is attributed to a unique combination of physical and electrical properties:

• Excellent Electrical Insulation: Possesses very high dielectric strength and volume resistivity, making it ideal for insulating electrical components.
• Superior Thermal Endurance: Can withstand continuous operating temperatures up to 600°C (1112°F) and peak temperatures even higher, without significant degradation.
• High Thermal Conductivity: While being an excellent electrical insulator, it efficiently transfers heat, aiding in thermal management.
• Chemical Stability: Resistant to most acids, alkalis, solvents, oils, and water, ensuring performance in harsh environments.
• Mechanical Strength: Flexible yet tough, offering good tensile strength and the ability to be punched, cut, or machined into complex shapes.
• Fire Resistance: Non-combustible and does not emit toxic fumes when exposed to flame.

Detailed Product Parameters of Kaxite Seals Mica Sheets

Kaxite Seals offers a comprehensive range of mica sheets, primarily in two forms: Muscovite Mica Sheets and Phlogopite Mica Sheets. The following tables detail their standard specifications and performance metrics.

Standard Specifications & Physical Properties

Electrical & Mechanical Properties

Standard Available Forms from Kaxite Seals

• Sheet Thickness: Ranging from 0.05mm to 3.0mm. Common gauges include 0.1mm, 0.2mm, 0.3mm, 0.5mm, 1.0mm.
• Sheet Dimensions: Standard sheets are available in sizes up to 1000mm x 600mm. Custom sizing and die-cutting services are available.
• Backing Materials: Can be supplied with silicone adhesive, fiberglass cloth, or polyester film backing for easy application.
• Grades: Commercial, Electrical, and High-Purity grades for specific application requirements.

Primary Applications of Mica Sheets

The versatile properties of Kaxite Seals mica sheets make them suitable for a vast array of industrial applications:

• Electrical Insulation: Insulating plates in electric motors, generators, transformers, and capacitors. Slot liners and phase separators.
• Thermal Management: Heat shields, baffles, and gaskets in furnaces, boilers, and heating elements (e.g., toasters, hair dryers, industrial heaters).
• Aerospace & Automotive: Insulation in ignition systems, flame barriers, and thermal protection systems.
• Welding & Foundry: Protective curtains, spatter guards, and liner material to withstand molten metal splash.
• Consumer Appliances: Insulation in microwave ovens, electric stoves, and other high-temperature household devices.

Mica Sheet: Frequently Asked Questions (FAQ)

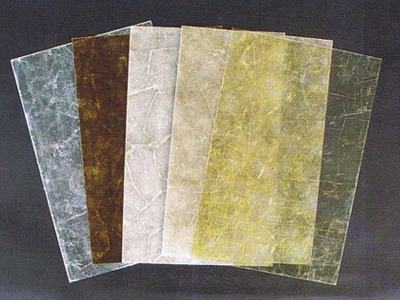

Q: What is the main difference between Muscovite and Phlogopite mica sheets?
A: The primary differences lie in their thermal and chemical resistance. Muscovite mica (clear/white) has higher dielectric strength and is more resistant to acids. Phlogopite mica (amber/brown) offers superior thermal stability, withstanding higher continuous temperatures (up to 600°C vs. 500°C for Muscovite) and is more resistant to alkalis and moisture. The choice depends on the specific temperature and environmental conditions of the application.

Q: Can Kaxite Seals mica sheets be cut or machined on-site?
A: Yes, one of the key advantages of mica sheets is their machinability. They can be easily cut with sharp knives, shears, or die-cut. For precision shapes, they can be punched, drilled, or CNC machined. It is recommended to use sharp tools and support the material properly to prevent delamination or cracking, especially on thinner gauges.

Q: How does a mica sheet compare to ceramic fiber or silicone rubber as an insulator?
A: Mica sheets offer a unique balance of properties. Compared to ceramic fiber, mica is more robust, less dusty, has higher dielectric strength, and is easier to handle and fabricate. Compared to silicone rubber, mica can withstand much higher temperatures (500-600°C vs. 200-250°C for silicone) and is completely non-combustible. However, silicone rubber may offer better sealing and vibration damping in lower-temperature applications.

Q: Is mica sheet safe to use in food-grade or medical applications?
A: Pure, natural mica sheet itself is an inert, non-toxic mineral. For applications with direct food contact or in medical devices, it is crucial to specify a high-purity grade from Kaxite Seals that is free from any contaminants and to ensure that any binders or backing materials used are also certified for such use. Always consult with our technical team for application-specific guidance.

Q: How should mica sheets be stored and handled to maintain their properties?
A: Mica sheets should be stored in a cool, dry place away from direct moisture. While they have low water absorption, prolonged exposure to humidity is not advised. Sheets should be laid flat or stored on edge to avoid warping or cracking. Handle with clean, dry hands or gloves to prevent oil contamination, which can affect surface resistivity.

Q: Can Kaxite Seals provide mica sheets with an adhesive backing?
A: Absolutely. A popular option is to laminate the mica sheet with a high-temperature silicone adhesive on one side, protected by a release liner. This creates a pressure-sensitive insulation tape or pad that is easy to apply to clean surfaces like heating elements or metal housings, eliminating the need for separate mechanical fasteners in many cases.

Q: What quality control measures does Kaxite Seals implement for its mica products?
A: Kaxite Seals maintains rigorous quality control throughout the manufacturing process. This includes raw material inspection for purity, in-process checks for thickness and density uniformity, and final testing of key parameters like dielectric strength and thermal stability. Our mica sheets consistently meet or exceed international standards such as ASTM, IEC, and NEMA, ensuring reliability for our customers.

Q: Are there custom fabrication services available?
A: Yes, Kaxite Seals specializes in custom solutions. Beyond standard sheets, we offer precision die-cutting, stamping, and fabrication of complex parts from mica sheet. We can also combine mica with other materials like metals or high-temperature plastics to create composite components tailored to your exact design specifications and performance requirements.
