Non-asbestos Gaskets: A Complete Technical Guide by Kaxite Seals

In industrial sealing, the shift towards safer, high-performance materials has made non-asbestos gaskets the global standard. For engineers, procurement specialists, and maintenance managers, selecting the right gasket material is critical for ensuring system integrity, safety, and compliance. Kaxite Seals, with decades of expertise in advanced sealing solutions, provides this comprehensive guide to non-asbestos gasket technology, specifications, and application.

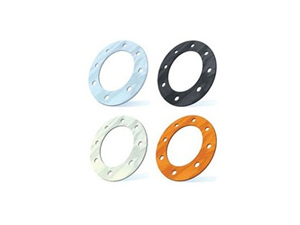

Non-asbestos gaskets are engineered sealing materials designed to replace traditional asbestos-based gaskets. They are fabricated from a blend of synthetic fibers (such as aramid, glass, carbon, or cellulose), elastomeric binders, and fillers. This composition delivers exceptional thermal resistance, chemical compatibility, and mechanical strength without the health and environmental hazards associated with asbestos. Kaxite Seals' formulations are rigorously tested to meet international standards for performance in demanding environments across oil & gas, chemical processing, power generation, and marine industries.

Core Material Composition & Properties

The superior performance of Kaxite non-asbestos gaskets stems from a carefully balanced composition:

• Reinforcement Fibers: Aramid (e.g., Kevlar®), glass, carbon, or mineral fibers provide tensile strength, dimensional stability, and tear resistance.
• Elastomeric Binders: Nitrile rubber (NBR), styrene-butadiene rubber (SBR), or acrylic binders offer flexibility, compressibility, and sealing force.
• Fillers & Additives: Materials like clay, mica, or synthetic polymers enhance temperature resistance, improve creep relaxation behavior, and provide anti-stick properties.
• Impregnants & Coatings: Graphite, PTFE, or silicone coatings are often applied to improve chemical resistance, reduce breakout torque, and enhance sealing on imperfect flanges.

Detailed Product Parameters & Specifications

Kaxite Seals offers a range of non-asbestos sheet gasket materials, each graded for specific service conditions. The following table outlines key specifications for our primary product series.

Advantages of Choosing Kaxite Non-Asbestos Gaskets

• Health & Safety: Completely asbestos-free, eliminating risks of asbestosis, lung cancer, and mesothelioma, ensuring a safer workplace and compliance with global bans (OSHA, REACH).
• Consistent Performance: Homogeneous material structure provides uniform sealing stress, reducing the risk of leakage paths common in older composite materials.
• Excellent Creep Relaxation Resistance: Kaxite formulations are engineered to maintain bolt load over extended periods, even under thermal cycling, preventing flange leakage.
• Wide Media Compatibility: From refrigerants and hydraulic oils to strong acids and saturated steam, our material grades cover an extensive range of industrial fluids.
• Easy Installation & Removal: The materials are less brittle than compressed asbestos, cutting cleanly and disintegrating less, which simplifies maintenance and reduces flange cleaning time.

Frequently Asked Questions (FAQ) on Non-Asbestos Gaskets

What exactly are non-asbestos gaskets made of?

Non-asbestos gaskets are composite materials. They typically use synthetic organic fibers like aramid (e.g., Kevlar®) or inorganic fibers like glass as the primary reinforcement. These fibers are bound together using various elastomers like nitrile rubber (NBR) for oil resistance or SBR for general purpose use. Fillers such as clay or mica are added to modify properties like compressibility and temperature resistance. Kaxite Seals may also add special impregnations like graphite or PTFE to enhance specific characteristics like lubricity or chemical resistance.

Are non-asbestos gaskets as durable and heat-resistant as traditional asbestos gaskets?

Yes, modern high-quality non-asbestos gaskets like those from Kaxite Seals meet or exceed the performance of traditional asbestos materials. While pure asbestos had very high intrinsic temperature resistance, its brittle nature was a drawback. Our engineered materials combine high-temperature fibers (aramid, glass) with advanced binders to achieve continuous service temperatures up to 300°C (572°F) and even higher for short excursions. They offer superior tensile strength, better compressibility, and excellent recovery, leading to more reliable sealing under cycling conditions.

How do I select the correct non-asbestos gasket grade for my application?

Selection requires evaluating four key service parameters: Temperature, Pressure, Media (chemical being sealed), and Flange Type/Surface. First, match the maximum continuous temperature of your process to the gasket material's rating. Second, ensure the material's maximum pressure rating exceeds your system pressure. Third, and most crucially, verify chemical compatibility—consult the manufacturer's chemical resistance chart. Kaxite Seals provides detailed charts for each grade. Finally, consider flange condition; for uneven or pitted flanges, a thicker, more conformable grade like KX-NAF 1500 may be preferable.

Can non-asbestos gaskets be used in all the same applications as spiral-wound or metal gaskets?

Non-asbestos sheet gaskets are ideal for low to medium-pressure applications with standard flat-face or raised-face flanges. For very high pressures (e.g., above 300 Bar), extreme temperatures (above 450°C), or severe thermal cycling, a spiral-wound gasket (which often incorporates a non-asbestos filler) or a solid metal gasket is typically required. Non-asbestos materials are the direct, superior replacement for compressed asbestos fiber (CAF) sheet gaskets in the vast majority of industrial piping, pump, and valve applications.

What are the storage and handling recommendations for non-asbestos gasket sheets?

Store sheets in a cool, dry place away from direct sunlight, ozone sources (like electric motors), and excessive heat. Ideally, store them flat to prevent curling or bending. Keep them in their original packaging until use to protect from dust, moisture, and mechanical damage. When cutting gaskets, use sharp tools and clean the flange surfaces thoroughly of old gasket material and debris. Always follow the manufacturer's recommended bolt torque sequence and values to achieve proper compression without damaging the gasket.

How does Kaxite Seals ensure the quality and consistency of its non-asbestos materials?

Kaxite Seals employs a rigorous quality management system certified to ISO 9001. Our production process begins with certified raw materials from trusted suppliers. Every batch of compound is tested for key physical properties such as density, tensile strength, compressibility, recovery, and creep relaxation. Final sheet goods undergo inspection for thickness uniformity, surface quality, and dimensional stability. We provide mill test certificates with key performance data for critical shipments, ensuring full traceability and compliance with international material specifications like ASTM F 104, DIN 3754, and API 601.
