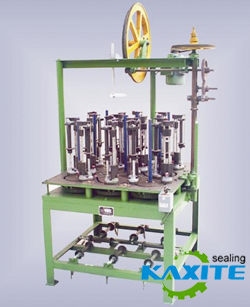

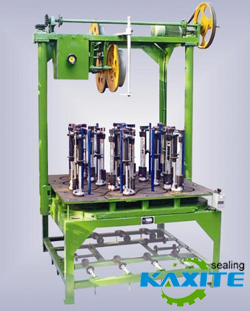

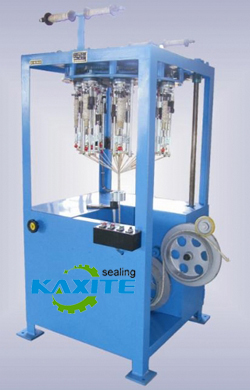

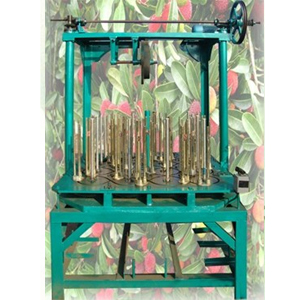

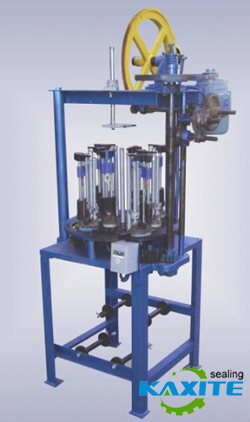

Machines For Braiding Packing Manufacturer in China

For over four decades, specialized equipment has been essential for producing reliable sealing components. At the forefront of this manufacturing technology are Machines for Braiding Packing. These sophisticated units are engineered to transform various yarns—such as aramid, PTFE, carbon, and fiberglass—into dense, uniform, and high-performance braided packing seals. These seals are critical in controlling leakage in pumps, valves, and rotating equipment across industries like chemical processing, oil & gas, marine, and power generation. The precision and consistency offered by modern braiding machines directly correlate to the packing's operational lifespan, pressure resistance, and overall sealing efficacy.

Kaxite Seals has dedicated itself to mastering this precise engineering. We don't just supply sealing materials; we design and manufacture the advanced machinery required to produce them to the most exacting standards. Our machines for braiding packing represent a synthesis of robust mechanical design, intuitive controls, and deep process knowledge, ensuring our clients can manufacture sealing products that meet the stringent demands of global industries.

Core Components and Technical Specifications

A modern braiding machine is a complex assembly of coordinated systems. Below is a detailed breakdown of its core components and the technical parameters that define its capability.

Key System Components:

• Braiding Carrier System: The heart of the machine, comprising carriers that hold bobbins of yarn. The number of carriers (e.g., 16, 24, 32, 48) determines the braid density and pattern complexity.
• Track Plate (Horn Gears): A circular assembly of intermeshing gears that guide the carriers in a precise sinusoidal "Maypole" dance, intertwining the yarns.
• Take-up Unit: A motorized system that pulls the completed braid from the machine at a controlled, consistent speed, directly affecting braid angle and density.
• Yarn Tensioning System: Individual or group tensioners for each carrier to ensure uniform yarn feed, which is critical for producing a balanced, void-free packing.
• Control Panel (PLC/HMI): The operational brain. A Programmable Logic Controller (PLC) and Human-Machine Interface (HMI) touchscreen allow for precise setting and monitoring of speed, take-up rate, and carrier coordination.
• Core Feeding Attachment (Optional): For producing lubricant-impregnated or structured core packing, this device inserts a wire, tubular braid, or other core material centrally into the braiding process.

Detailed Technical Parameter Table

The following table outlines the standard and advanced specifications for Kaxite Seals' braiding machinery series, illustrating the range of production capabilities available.

Advanced Features for Superior Packing Production

Moving beyond standard specifications, Kaxite Seals integrates advanced features to solve specific manufacturing challenges and enhance output quality.

• Automatic Lubricant Injection System: For producing pre-lubricated packing (e.g., PTFE/Graphite), our systems can meter and inject dispersions directly into the braid during formation, ensuring even distribution and eliminating a secondary process.
• In-line Diameter Laser Measurement: A non-contact laser gauge continuously monitors the braid diameter, providing real-time feedback to the take-up system for automatic correction, guaranteeing dimensional consistency.
• Bobbin End-of-Yarn Detection: Sensors on each carrier can alert the operator or pause the machine when a bobbin is nearly empty, preventing defects and material waste.
• Modular Design: Our machines for braiding packing are designed with modularity. Carriers and track plates can often be upgraded or reconfigured to change carrier count or braid pattern, protecting your investment.
• Data Logging and Connectivity: Higher-end models can log production data (speed, length, stops) and offer connectivity for Industry 4.0 integration, facilitating production analysis and planning.

Frequently Asked Questions (FAQ) on Machines for Braiding Packing

What is the primary difference between a 16-carrier and a 32-carrier machine?
The number of carriers dictates the density and structure of the braid. A 16-carrier machine produces a relatively flexible, less dense braid suitable for general-purpose packing. A 32-carrier machine creates a much denser, tighter, and more robust braid, which is essential for high-pressure applications, abrasive media, or when using very fine yarns like PTFE to achieve a smooth, low-friction finish. The choice depends on the performance specifications of the packing you intend to manufacture.

How critical is yarn tension control in the braiding process?
It is absolutely paramount. Inconsistent yarn tension is the leading cause of defective braided packing. If one yarn is tighter than others, it creates a "snaking" or unbalanced braid with uneven density, leading to weak spots and potential leakage in service. Kaxite Seals' machines employ precise tensioning systems—from grouped mechanical to individual electronic tensioners—to ensure every strand contributes equally to the braid's integrity, resulting in a product with uniform cross-section and mechanical properties.

Can one machine produce a wide range of packing sizes?
Yes, but within its designed range. The producible diameter is determined by the machine's carrier path diameter, the number of carriers, the yarn size (denier/tex), and the take-up speed. Our standard machines for braiding packing, like the KX-BM-S series, typically cover a versatile range from 3mm to 25mm. For specialized micro-braiding (under 3mm) or very large diameter packing (over 25mm), specific machine configurations with different carrier tracks and take-up mechanics are required.

What maintenance do braiding machines typically require?
Regular preventive maintenance is key for longevity and consistent output. Daily tasks include cleaning lint and debris from carriers and track plates. Weekly checks should involve lubricating horn gears and carrier bearings as per the manual, and inspecting tensioners for wear. Monthly/quarterly maintenance involves a more thorough inspection of gears, drive belts, and electrical connections. Kaxite Seals provides comprehensive maintenance schedules and training with every machine to minimize unplanned downtime.

How does the take-up system affect the final packing product?
The take-up system controls the braid's "pick count" or "braid angle"—the angle at which the yarns cross each other. A faster take-up speed creates a longer, looser braid with a lower pick count (more open angle), which is more flexible. A slower take-up speed produces a shorter, tighter, and denser braid with a higher pick count (steeper angle), offering greater structural integrity and pressure resistance. Our servo-driven take-up units allow for precise, reproducible control of this critical parameter.

Is training provided for operating these specialized machines?
Yes. Kaxite Seals believes proper training is integral to achieving optimal results. We provide detailed operational training covering machine setup, yarn loading, parameter programming (speed, tension, take-up), routine operation, basic troubleshooting, and safety procedures. This training can be conducted at our facility during factory acceptance tests or at the customer's site during installation and commissioning.

What types of yarn materials can your machines process?
Our machines for braiding packing are designed to handle the broad spectrum of materials used in modern packing. This includes synthetic fibers like aramid (e.g., Kevlar), PTFE (Teflon), and high-performance polyethylene, as well as natural fibers like flax and ramie. They are also compatible with carbon fiber, fiberglass, and various hybrid or composite yarns. Key machine settings, particularly tension and sometimes carrier guides, may need adjustment to accommodate the specific friction and tensile properties of different yarns.

Can your machines produce both square braid and round braid packing?

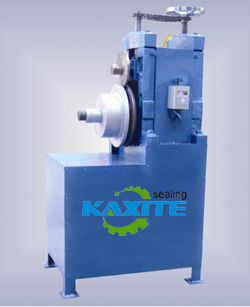

The standard "Maypole" braiding process inherently produces a round or tubular braid. To manufacture classic square braid packing (which is actually a round braid compressed into a square shape), a secondary process—calendering—is required. Our machines produce the high-quality round braid, which is then passed through calendering rolls under heat and pressure to form the final square cross-section. Some advanced systems can integrate a basic calendering stage in-line.
