As a professional in the field of industrial sealing for over two decades, I understand the critical role that the right materials play in the success and safety of any project. Among the most versatile and essential components in this arena are compression sheets. These materials are the unsung heroes in countless applications, from piping and flanges to machinery and heavy equipment. Today, I want to delve deep into the world of compression sheets, focusing on the high-quality solutions offered by Kaxite Seals. This guide will provide a detailed look at product specifications, technical data, and answer common questions to help you make an informed decision.

What Are Compression Sheets?

Compression sheets, often referred to as gasket sheets, are semi-finished materials manufactured from various elastomers, fibers, and sometimes metals. They are designed to be cut into specific gasket shapes to create a static seal between two mating surfaces. The primary function is to prevent the leakage of fluids (liquids or gases) and to keep out contaminants under compressive load. The effectiveness of a compression sheet lies in its ability to flow into the microscopic imperfections of flange faces, creating a tight, reliable barrier.

Kaxite Seals specializes in producing compression sheets that meet rigorous international standards, ensuring performance in extreme temperatures, pressures, and chemical environments. Whether you're in oil & gas, chemical processing, power generation, or manufacturing, selecting the correct sheet material is paramount.

Key Material Types and Properties

Compression sheets are not a one-size-fits-all solution. Different base materials offer distinct properties suited for specific service conditions. Here’s a breakdown of the primary types available from Kaxite Seals:

• Aramid Fiber Sheets: Known for exceptional high-temperature resistance, strength, and durability. Ideal for hot oil and steam applications.
• Compressed Non-Asbestos (CNA) Sheets: The modern, safer alternative to traditional asbestos sheets. Made from organic and inorganic fibers bonded with nitrile or other elastomers. Excellent for general-purpose use with water, steam, oils, and fuels.
• Graphite Sheets: Pure exfoliated graphite or reinforced with stainless steel inserts. Offer superb thermal conductivity, flexibility, and resistance to extreme temperatures and a wide range of chemicals. Perfect for heat exchangers and severe service.

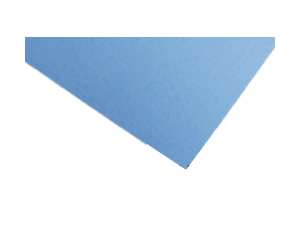

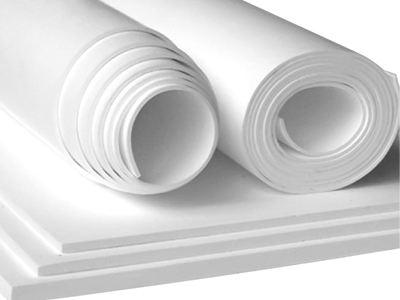

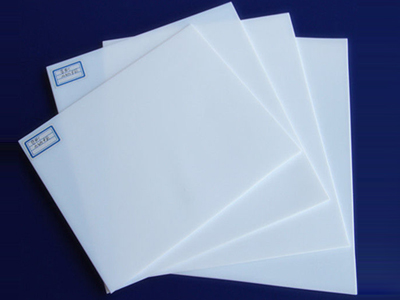

• PTFE Sheets: Made from polytetrafluoroethylene, offering near-universal chemical resistance and a very low coefficient of friction. Used in highly corrosive chemical services and for applications requiring high purity.
• Rubber-Based Sheets (NBR, EPDM, CR, Silicone): Sheets compounded from specific rubbers. Nitrile (NBR) is excellent for oil and fuel; EPDM for hot water and steam; Neoprene (CR) for moderate chemicals; Silicone for extreme high and low temperatures.

Kaxite Seals Compression Sheets: Detailed Technical Specifications

To ensure you select the perfect material for your application, it is crucial to examine the technical parameters. Below is a comprehensive table comparing the key properties of our flagship compression sheet series. All Kaxite Seals products are tested according to ASTM, DIN, and other relevant standards to guarantee consistency and reliability.

Physical & Mechanical Property Chart

Frequently Asked Questions (FAQ) About Compression Sheets

Q: How do I choose the right compression sheet material for my application?
A: The selection depends on four primary factors: the fluid/media being sealed (chemical compatibility), the operating temperature, the system pressure, and the flange condition/surface finish. Always consult the chemical resistance charts for the specific material. For example, use KX-GRAPH100 for high-temperature heat exchangers, KX-FEPTO500 for aggressive acids, and KX-CNA4000 for high-pressure steam lines. Kaxite Seals provides detailed technical datasheets for each grade to guide this decision.

Q: Can I cut gaskets from compression sheets myself, and what tools are recommended?
A: Yes, one of the main advantages of compression sheets is that they can be easily fabricated on-site. For simple shapes, a sharp utility knife, metal ruler, and a cutting surface are sufficient. For bolt holes, use hollow punches. For more complex or high-volume production, clicker dies or CNC cutting machines are recommended. Always cut the gasket slightly larger than the inner diameter and slightly smaller than the outer diameter to ensure proper positioning and compression.

Q: What is the shelf life of Kaxite Seals compression sheets, and how should they be stored?
A: When stored correctly, our sheets have a typical shelf life of 5-8 years from the date of manufacture. Store them in a cool, dry, dark place away from direct sunlight, ozone sources (like electric motors), and excessive heat. Keep them flat, preferably on a shelf, and do not bend or fold them to prevent permanent deformation. Rubber-based sheets (like KX-ELAST70) should be kept away from oils and solvents.

Q: How do I determine the correct thickness of the sheet to use?
A: Thickness selection is based on flange type, surface condition, and pressure. Standard thicknesses range from 0.5mm (1/64") to 3.0mm (1/8"). For uneven or pitted flange faces, a thicker, more compressible sheet (like graphite or CNA) may be needed to fill imperfections. For smooth, machined faces and high pressure, a thinner sheet is often adequate to achieve the required sealing stress. Refer to ASME B16.21 or specific equipment manuals for guidelines.

Q: Are Kaxite Seals compression sheets suitable for food-grade or potable water applications?
A: Absolutely. Specific grades, such as our KX-FEPTO500 (PTFE) and certain white FDA-listed rubber compounds, are certified for use with potable water and food contact. They are manufactured in clean environments and comply with standards like FDA CFR 21, NSF/ANSI 61, and WRAS. Always specify your need for food-grade or potable water certification when ordering.

Q: What is the difference between a compressed non-asbestos (CNA) sheet and an aramid fiber sheet?
A: While both are fiber-reinforced, CNA sheets typically use a blend of organic (e.g., cellulose) and inorganic (e.g., glass) fibers with a rubber binder, making them cost-effective and versatile for general industrial use. Aramid fiber sheets, like our KX-CNA4000, use high-strength synthetic aramid fibers (e.g., Kevlar®) which provide significantly higher tensile strength, better temperature resistance, and superior durability in more demanding services like high-pressure steam and hot oil systems.

Q: How important is bolt torque when installing a gasket made from a compression sheet?
A: It is critically important. Insufficient torque leads to low sealing stress and leakage. Excessive torque can over-compress the sheet, causing it to extrude, crack, or crush flange faces. Always follow a star-pattern tightening sequence and use a calibrated torque wrench. The target torque should be calculated based on the gasket material's required sealing stress (see our property chart), bolt size, grade, and number. Kaxite Seals can provide torque calculation guidance for our materials.

Installation Best Practices for Optimal Performance

Even the highest-quality compression sheet will fail if installed incorrectly. Follow these key steps:

1. Surface Preparation: Clean both flange faces thoroughly. Remove all old gasket material, rust, and debris. Check for scratches, warping, or pitting. The surface finish should be between 125 and 250 µin Ra for optimal sealing.
2. Gasket Cutting & Fit: Ensure the gasket is cut to the correct dimensions. It should fit inside the bolt holes without obstruction.
3. Alignment: Do not use lubricants or adhesives unless specified for the material (e.g., graphite may not require any). Center the gasket carefully on the flange.
4. Bolt Torquing: Hand-tighten all bolts. Then, using a criss-cross pattern, torque bolts to 30% of the final value, then 60%, and finally 100%. For critical applications, a "hot torque" re-tightening after the first heat cycle may be necessary.
5. Inspection: After disassembly, inspect the used gasket for signs of uniform compression, blowout, or chemical attack. This provides valuable feedback for future material selection.
