Expanded Graphite Gaskets Manufacturer in China for High-Performance Sealing Solutions

What are Expanded Graphite Gaskets?

At the heart of modern industrial sealing solutions lies a remarkable material: expanded graphite. Expanded graphite gaskets are engineered sealing components crafted from exfoliated or expanded graphite. This process involves treating natural flake graphite with acid and heat, causing it to expand volumetrically by hundreds of times. The resulting material is then calendered into flexible sheets or foils, which are either die-cut into gaskets or supplied in roll form for custom fabrication. These gaskets are renowned for their exceptional performance in challenging environments where traditional materials like rubber, fiber, or PTFE often fall short. The intrinsic properties of pure graphite—its ability to withstand extreme temperatures, resist aggressive chemicals, and maintain a reliable seal under fluctuating pressures—make these gaskets a preferred choice across numerous critical industries.

Key Features and Benefits of Kaxite Seals Expanded Graphite Gaskets

Kaxite Seals specializes in manufacturing premium expanded graphite gaskets designed for reliability and longevity. Our products stand out due to several inherent advantages:

• Extreme Temperature Resilience: Capable of continuous service from cryogenic temperatures as low as -400°F (-240°C) up to highly oxidizing atmospheres at 1000°F (538°C) and in non-oxidizing or reducing atmospheres up to 5432°F (3000°C).
• Superior Chemical Resistance: Inert to most industrial fluids, including acids, alkalis, solvents, and hydrocarbons, with the exception of strong oxidizing agents.
• Excellent Sealing Performance: The soft, conformable nature of expanded graphite allows it to flow into minor flange imperfections, creating a tight, leak-free seal even at low bolt loads.
• Creep Relaxation Resistance: Exhibits minimal relaxation under load and temperature cycling, maintaining flange integrity and preventing leakage over time.
• Thermal & Electrical Conductivity: Provides good heat dissipation and electrical grounding across the flange joint.
• No Binder Degradation: Unlike compressed fiber sheets, pure expanded graphite contains no binders that can bake out or degrade, ensuring long-term seal integrity.

Technical Specifications & Product Parameters

Kaxite Seals offers a comprehensive range of expanded graphite gasket products to meet diverse application requirements. Below are the detailed specifications for our standard sheet and tape offerings.

Standard Material Properties

Kaxite Seals Product Range

Industry Applications

The versatility of Kaxite Seals expanded graphite gaskets makes them indispensable across a wide spectrum of industries. Their primary applications include:

• Power Generation: Sealing flanges in boilers, heat recovery steam generators (HRSGs), turbines, and high-temperature steam lines. They handle thermal cycling and high pressures exceptionally well.
• Oil & Gas, Petrochemical & Refining: Used in critical service on heat exchangers, reactors, column manways, and pipeline flanges handling hydrocarbons, sour gas (H2S), and various process chemicals.
• Chemical Processing: Ideal for aggressive media including strong acids (except nitric, oleum) and alkalis in reactors, vessels, and piping systems.
• Pharmaceutical & Food: High-purity grades are used where cleanliness and non-contamination are paramount, suitable for CIP/SIP processes.
• Automotive & Aerospace: Used in exhaust systems, fuel cell assemblies, and high-temperature engine components.
• General Industrial: A reliable solution for industrial ovens, furnaces, compressor flanges, and any application involving heat and pressure.

Frequently Asked Questions (FAQ)

Q: What is the main difference between expanded graphite gaskets and compressed non-asbestos (CNAF) gaskets?

A: The core difference lies in material composition and performance limits. Expanded graphite gaskets are made from virtually pure graphite, offering superior temperature resistance (up to 550°C in air vs. ~300°C for CNAF) and much better chemical resistance, especially to solvents and hydrocarbons. CNAF gaskets are composite materials with elastomeric binders, which can degrade at high temperatures. Graphite is also more conformable, providing a better seal on imperfect flanges with lower required bolt load.

Q: Can expanded graphite gaskets be used with strong oxidizing acids like nitric acid or oleum?

A: No, this is a critical limitation. Pure expanded graphite will oxidize rapidly and can even ignite in the presence of strong oxidizing agents such as nitric acid, sulfuric acid above 98% concentration (oleum), perchloric acid, and certain powerful oxidizers like chlorine trifluoride. For these services, PTFE or specialized fluorocarbon gaskets are recommended.

Q: How do I determine the correct density and thickness for my application?

A: Selection depends on flange condition, pressure, temperature, and media. Standard applications often use 1.5mm thick sheet with a density of 1.0-1.1 g/cm³. For higher pressure or to fill larger gaps, a thicker (3.0mm) or higher density sheet may be needed. For uneven or warped flanges, a softer, conformable grade is better. Kaxite Seals provides technical support to help you select the optimal grade based on your specific operating conditions and flange design (e.g., ASME B16.21 facings).

Q: Are there any handling or storage precautions for expanded graphite gaskets?

A: Yes. While robust in service, the sheets are flexible and can be torn if mishandled. Store them in a cool, dry place away from direct sunlight and strong oxidizing chemicals. Keep them in their original packaging until use to prevent contamination from dust or grease. Use clean tools during installation. Avoid folding or creasing the material, as this can create weak points.

Q: Can Kaxite Seals expanded graphite gaskets be used as spiral wound gasket filler?

A: Absolutely. High-purity expanded graphite foil is the standard and preferred filler material for spiral wound gaskets (SWGs) in high-temperature service. Kaxite Seals supplies premium graphite foil specifically engineered for this purpose, offering consistent density and thickness to ensure reliable performance in the demanding spiral wound gasket construction.

Q: Do you offer fire-safe certifications for your graphite gaskets?

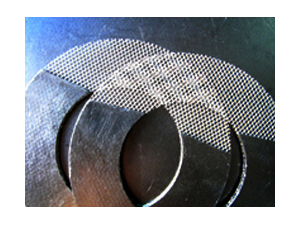

A: Yes. Many grades of Kaxite Seals expanded graphite gaskets meet the requirements of international fire-safe standards such as API 607, API 6FB, and ISO 10497. These standards test the gasket's ability to maintain a seal during and after exposure to intense direct flame. Our graphite gaskets, especially when laminated with metal reinforcement, perform exceptionally well in these tests, making them suitable for safety-critical applications in refineries and chemical plants.

Q: How do I install an expanded graphite gasket correctly?

A: Proper installation is key. Ensure flanges are clean, undamaged, and aligned. Do not use lubricants or adhesive on the gasket unless specifically recommended for a specialized product. Center the gasket on the flange. Use a calibrated torque wrench and follow a cross-bolting pattern (star pattern) to tighten bolts in incremental steps (e.g., 30%, 60%, 100% of final torque) to achieve even compression. Re-torquing after 24 hours of operation or a heat cycle is often recommended to compensate for initial relaxation.

Why Choose Kaxite Seals for Your Expanded Graphite Needs?

Selecting Kaxite Seals means partnering with a dedicated specialist in high-performance sealing solutions. Our expanded graphite gaskets are manufactured under strict quality control protocols, ensuring batch-to-batch consistency, high purity (low chloride and sulfur content), and optimal mechanical properties. We offer not just off-the-shelf sheets but also comprehensive custom fabrication services, including precision die-cutting, laser cutting for complex shapes, and lamination with various metal cores or facings. Our technical team provides expert application support, helping you navigate temperature-pressure charts, chemical compatibility questions, and flange design considerations to select the perfect gasket for reliability, safety, and total cost-effectiveness. We understand that a gasket is a small component with a critical mission, and we engineer our products accordingly.
