In the demanding world of industrial maintenance and engine repair, precision, efficiency, and reliability are non-negotiable. The cornerstone of achieving leak-free seals in countless applications, from automotive engines to complex pipeline systems, lies in the quality of the gasket and, critically, the tools used to install it. Proper gasket installation is not merely a step in the process; it is the definitive factor between a secure, long-lasting seal and a costly, dangerous failure. This guide delves into the essential world of Gasket Tools, offering a professional overview of their types, applications, and the technical specifications that define excellence in the field.

Why Professional Gasket Tools Are Indispensable

Using the correct gasket tools transcends convenience. It ensures:

Uniform Surface Preparation: Tools like gasket scrapers and surface plates create the perfectly clean, flat mating surfaces necessary for optimal gasket adhesion and compression.
Accurate Gasket Placement: Alignment pins and installation tools guarantee the gasket is positioned correctly, preventing misalignment that can lead to immediate leakage.
Controlled Bolt Torque: Torque wrenches and sequence tools are vital for applying the precise, even clamping force specified by engineers, preventing gasket blow-out or distortion.
Damage Prevention: Specialized removal tools eliminate the risk of gouging or scratching delicate sealing surfaces during gasket removal, saving time and expensive component replacements.
Enhanced Safety and Compliance: Properly sealed systems prevent leaks of hazardous fluids, ensuring operational safety and adherence to environmental regulations.

Comprehensive Gasket Tool Categories and Specifications

The toolkit of a professional technician is diverse. Below is a breakdown of primary gasket tool categories with key parameters.

1. Surface Preparation Tools

Gasket Scrapers & Razor Blades:
- Material: High-carbon steel or hardened stainless steel.
- Blade Width: Ranging from 25mm (1") for intricate areas to 75mm (3") for large surfaces.
- Handle Design: Ergonomic, non-slip grips for control and safety.
- Application: Manual removal of old gasket material and sealants.
Surface Plates & Stones:
- Material: Fine-grain granite (plates) or aluminum oxide/silicon carbide (stones).
- Flatness Tolerance: Up to ±0.0001 inches (±0.00254mm) for master-grade plates.
- Grit Level (Stones): From coarse (80-120 grit) for material removal to fine (400-1000+ grit) for polishing.
- Application: Checking and restoring flatness of cylinder heads, manifolds, and other sealing flanges.

2. Installation & Alignment Tools

Tool Type	Primary Material	Key Dimensions / Specifications	Typical Application
Alignment Pins / Dowels	Hardened Tool Steel, Brass	Diameter: 6mm to 20mm; Length: 40mm to 150mm; Tolerance: h6/g6 fit.	Precise alignment of cylinder heads, transmission housings, and pump covers during assembly.
Gasket Installation Kits	Steel, Aluminum, Plastic Guides	Kit includes multiple sleeves, cone guides, and drivers for specific engine families (e.g., GM LS, Ford Modular).	Safe installation of lip seals and O-rings without damage to the seal or housing.
Torque Wrenches	Chrome Vanadium Steel	Type: Click, Beam, Digital; Range: 10-300 Nm (or 7-220 ft-lbs); Accuracy: ±3-4%.	Applying specified torque to bolts in the correct sequence for even gasket compression.

3. Removal & Cleaning Tools

Tool Type	Description & Specifications	Safety Features
Rotary Gasket Removers	Pneumatic or electric tools with non-marring nylon/plastic brushes or discs. Speed: 2,000 - 20,000 RPM.	Non-sparking materials for use in hazardous environments; designed to protect base metal.
Chemical Solvent & Applicators	Non-flammable, biodegradable gasket removers. Applied with brushes or spray bottles.	Low VOC formulas; nitrile gloves and eye protection required.

Technical Parameters for Tool Selection

Selecting the right tool requires understanding these critical parameters:

Torque Range and Calibration: Match the wrench range to the fastener specifications. Regular calibration is essential for accuracy.
Material Hardness and Compatibility: Tool material must be harder than the gasket residue but softer than the sealing surface (e.g., brass scrapers for aluminum heads).
Ergonomics and Access: Tool design must allow for operation in confined spaces without compromising user safety or control.
Temperature and Chemical Resistance: Tools used in specific industries must withstand extreme temperatures or corrosive fluids.

Gasket Tools FAQ

Q: Can I use a regular putty knife instead of a dedicated gasket scraper?

A: It is strongly discouraged. Putty knives are made from softer steel that can easily dull or deform, increasing the risk of slipping and gouging the expensive mating surface. Dedicated gasket scrapers are made from hardened, precision-ground steel that maintains a sharp edge specifically designed to lift gasket material without damaging the underlying metal.

Q: How often should I calibrate my torque wrench?

A: Calibration frequency depends on usage. For professional daily use, calibration every 3-6 months or every 5,000 cycles is recommended. For occasional use, an annual check is advisable. Any wrench that has been dropped, subjected to extreme force, or hasn't been used in over a year must be calibrated before its next use to ensure accuracy and joint integrity.

Q: What is the most common mistake made during gasket installation?

A: The single most common mistake is improper surface cleaning. Even microscopic debris, old sealant, or corrosion spots can create a leak path. The second is incorrect torque application—either not following the manufacturer's sequence, which causes uneven clamping, or over-torquing, which can crush the gasket, distort the flange, or strip threads.

Q: Are there gasket tools specifically designed for reusable gaskets like those made from PTFE or graphite?

A: Yes. While surface preparation tools remain similar, installation tools differ. For large, delicate gaskets like PTFE envelopes, specialized lifting frames and alignment jigs are used. The torque procedure is also critical, often involving multiple incremental passes ("torquing in stages") to compress the gasket evenly without shearing or tearing it. Always refer to the gasket manufacturer's instructions, such as those provided with Kaxite Seals products, for tool and procedure recommendations.

Q: Why should I consider tools from a specialized brand like Kaxite Seals?

A: Kaxite Seals engineers its gasket tools with a deep understanding of sealing dynamics. Our tools are not generic; they are designed to complement our high-performance sealing products. For instance, our alignment pins are toleranced to match our gasket designs perfectly, and our recommended torque specs are derived from rigorous testing with our specific gasket materials. This systems approach—where the tool, the gasket, and the procedure are harmonized—delivers maximum reliability, longevity, and leak-free performance, reducing total cost of ownership.

Integrating Tools with High-Performance Gaskets

The synergy between premium gaskets and professional tools cannot be overstated. A top-tier gasket from a brand like Kaxite Seals, known for its advanced materials and precise engineering, can still fail if installed with improper tools or techniques. Conversely, using the correct tools ensures that the inherent properties of the gasket—be it the thermal resilience of a multilayer steel (MLS) head gasket or the chemical resistance of a Viton® flange gasket—are fully realized. When you invest in quality seals from Kaxite Seals, pairing them with the professional-grade tools discussed here is the final, critical step in guaranteeing a perfect seal.

View as

Gasket Punch Set

Kaxite's Gasket Punch Set offers a versatile solution for DIY enthusiasts and professionals, enabling precise gasket cutting from various materials. Its durable steel construction ensures longevity, while the ergonomic design provides comfort and control during use. Perfect for automotive repairs, home projects, or as a practical gift, this set simplifies tasks and delivers reliable results. With its superior quality and ease of use, it enhances your workshop efficiency and inspires confidence. Stand out with Kaxite's professional-grade tools that combine performance with value.

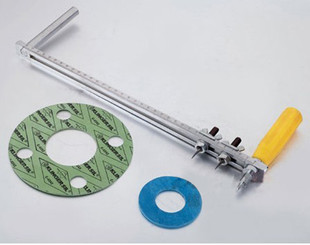

Gasket Cutter

Kaxite Gasket Cutter: the ultimate precision tool for effortless gasket cutting. Crafted from durable materials with intuitive design, it ensures clean, professional results every time. Ideal for DIY enthusiasts and professionals in automotive and industrial settings, it transforms tedious tasks into quick, satisfying work. Experience unmatched ease and reliability—make Kaxite your choice for seamless projects today!

Hand Cutter For Soft Gaskets

The Kaxite Hand Cutter For Soft Gaskets delivers precise, effortless cutting for gaskets and seals, perfect for DIY enthusiasts and professionals. Its ergonomic design and durable blade ensure clean, consistent results, saving time and reducing waste. Experience the confidence of perfect cuts every time with Kaxite's reliable tool.
