The Ultimate Guide to Serrated Gaskets: Precision Sealing for Demanding Applications
In the complex world of industrial sealing, where pressure, temperature, and media compatibility create a relentless challenge, standard flat gaskets often fall short. When flange surfaces are imperfect or require a seal capable of withstanding extreme conditions, engineers turn to a specialized solution: the Serrated Gaskets. These are not your ordinary gaskets; they are engineered sealing components designed to bite into flange surfaces, creating a superior, leak-tight seal that stands up to the most rigorous operational demands. For over two decades, Kaxite Seals has been at the forefront of manufacturing high-performance serrated gaskets, providing reliability and durability to industries worldwide.

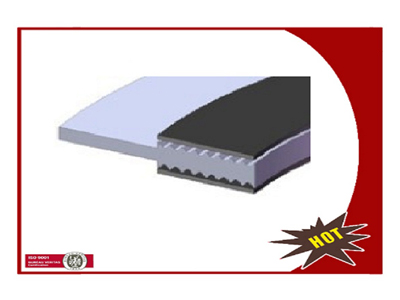

A serrated gasket features concentric grooves or serrations machined onto one or both of its faces. This unique design serves a critical purpose. As the flange bolts are torqued, the sharp peaks of the serrations concentrate the compressive load, allowing them to deform and embed slightly into the microstructure of the flange material. This mechanical interlocking action creates multiple concentric sealing barriers, effectively compensating for minor surface irregularities, scratches, or warpage that would cause a conventional gasket to fail. The result is a highly effective seal resistant to high pressure, thermal cycling, and potential creep relaxation.
Primary Applications of Serrated Gaskets
- High-Pressure Fluid Systems: Hydraulic systems, accumulators, and pressure vessels where internal pressures exceed the capabilities of standard gaskets.
- High-Temperature Services: Steam lines, heat exchangers, and turbine casings in power generation and petrochemical plants.
- Critical Process Piping: In chemical, oil & gas, and refining industries for sealing hazardous, toxic, or expensive media.
- Rough or Imperfect Flanges: Salvaging flanges that have been lightly corroded, scratched, or do not have a perfect surface finish.
- Vacuum Systems: Creating an absolute seal in high-vacuum chambers and equipment.
Kaxite Seals Serrated Gasket Product Parameters & Specifications
At Kaxite Seals, we manufacture serrated gaskets to exacting standards, using premium materials and precision machining. Our product range is defined by several key parameters:
1. Material Selection
We offer a comprehensive range of materials to suit various media, temperatures, and pressures.
| Material Grade | Common Name | Temperature Range (Approx.) | Key Features & Applications |
|---|---|---|---|
| SS 304 / 316 | Stainless Steel | -250°C to +800°C | Excellent corrosion resistance, high strength. Ideal for chemical, food, and marine applications. |
| Alloy 20 / Incoloy 825 | Nickel-Iron-Chromium | -100°C to +500°C | Superior resistance to sulfuric acid and chloride stress corrosion cracking. |
| Copper, Aluminum | Soft Metals | Varies by metal | High thermal conductivity, excellent conformability. Used in heat exchangers and low-pressure lines. |
| Carbon Steel | Mild Steel | -40°C to +500°C | Cost-effective, high tensile strength. Suitable for steam, water, and oil services. |
2. Serration Profile & Dimensions
The geometry of the serrations is critical to performance. Kaxite Seals offers customized profiles.
| Profile Type | Tooth Pitch (TPI) | Tooth Angle | Tooth Height | Best For |
|---|---|---|---|---|
| Concentric (V-Groove) | 24 to 60 TPI | 90° | 0.010" - 0.020" | General high-pressure service, most common. |
| Spiral (Spiralled) | Continuous Spiral | Varies | 0.015" - 0.025" | Creating a long, leak-path; often used for vacuum. |
| Double-Serrated | As per specification | 90° (both sides) | 0.010" - 0.020" | Sealing between two rough or uneven surfaces. |
3. Standard Specifications & Compliance
- Standards: Manufactured in accordance with ASME B16.20, B16.5, B16.47, and DIN standards.
- Pressure Ratings: Suitable for ASME Class 150 through 2500 and beyond, depending on material and design.
- Surface Finish: Serrated faces are precision machined to a finish typically between 63 to 125 microinches Ra (1.6 to 3.2 µm Ra).
- Thickness: Standard thickness ranges from 1/16" (1.5mm) to 1/4" (6.35mm), with custom thicknesses available.
- Coating/Plating: Optional coatings like silver, nickel, or PTFE can be applied for anti-galling, corrosion resistance, or easier release.
Kaxite Seals Serrated Gaskets: Frequently Asked Questions (FAQ)
Q: What is the fundamental advantage of a serrated gasket over a plain, flat metallic gasket?
A: The core advantage lies in its ability to achieve a superior seal on less-than-perfect flange surfaces. The sharp serrations concentrate bolt load, allowing them to embed into the flange material. This creates multiple physical barriers to leakage (the grooves act as small labyrinth seals) and compensates for minor surface defects. A plain flat gasket requires a near-perfect, high-finish surface to seal effectively and is more prone to leakage from flange distortion or creep.
Q: When should I specify a double-serrated gasket versus a single-serrated gasket?
A: Specify a single-serrated gasket (serrations on one side, flat on the other) when one flange face is in good condition with a smooth finish, and the opposite face is rougher or damaged. The serrated side seals against the imperfect face. Choose a double-serrated gasket when both mating flange surfaces have light imperfections, are both machined, or when sealing between two rigid surfaces where maximum bite and resistance to movement is required. Kaxite Seals engineers can advise on the best configuration for your specific flange condition.
Q: Can a serrated gasket be re-used after it has been compressed during installation?
A: It is strongly discouraged and generally not recommended. Once the serrations have been deformed and embedded into the flange surfaces during the initial bolting, their sealing geometry is altered. Reusing the gasket will not provide the same level of sealing integrity, as the serrations are already flattened and cannot create a new, effective bite. For critical services, always use a new Kaxite Seals serrated gasket during any re-assembly to ensure a leak-proof connection.
Q: How do I determine the correct bolt torque for installing a serrated metal gasket?
A: Correct bolt torque is crucial. Insufficient torque won't allow the serrations to embed properly, while excessive torque can shear the teeth or damage the flanges. The torque value depends on the gasket material, size, pressure class, and bolt specification. It is best practice to follow the equipment manufacturer's guidelines or relevant standard (like ASME PCC-1). As a general rule, serrated gaskets often require a higher initial bolt load than soft gaskets to achieve proper bite. Kaxite Seals provides recommended installation procedures and torque guidelines with our products.
Q: Are serrated gaskets suitable for sealing gases as well as liquids?
A: Absolutely. In fact, their ability to create a high-integrity seal makes them exceptionally well-suited for gaseous media, including toxic, flammable, or asphyxiant gases, and for high-vacuum applications. The multiple concentric seals formed by the embedded serrations present a very long, tortuous path for gas molecules to escape, making them highly effective for preventing gaseous leakage where even minor fugitive emissions are unacceptable.
Q: What flange surface finish is ideal for use with a serrated gasket from Kaxite Seals?
A: An ideal flange surface finish ranges from 125 to 250 microinches Ra (3.2 to 6.3 µm Ra). This is a relatively rough finish compared to what is needed for flat gaskets. The serrations are designed to bite into this surface texture. Flanges that are too smooth (e.g., a mirror finish) may not allow for adequate embedding, while excessively rough or deeply pitted surfaces may prevent uniform contact. The flange face should also be free of radial tool marks, which can provide a direct leak path.
Q: How does Kaxite Seals ensure the quality and consistency of its serrated gasket products?
A: Kaxite Seals employs a rigorous quality management system. Our process begins with certified raw materials, traceable to their mill source. Precision CNC machining ensures every serration is cut to exact depth, pitch, and angle. We perform dimensional inspections, material verification (via PMI where required), and visual inspections on every batch. For critical applications, we can provide material test certificates (MTCs) and implement statistical process control (SPC) to guarantee that every gasket meets the specified drawing and performance requirements.
