The Ultimate Guide to Ring Joint Gaskets

In the demanding world of industrial sealing, where extreme pressures, temperatures, and volatile media are the norm, failure is not an option. For critical applications in oil and gas, petrochemical, and high-pressure processing industries, the integrity of a flange connection is paramount. This is where the Ring Joint Gaskets (RJGs) stands as the undisputed engineering solution. Unlike conventional gaskets that rely on compressive force across an entire surface, the ring joint gasket employs a precision metal-to-metal seal, creating an exceptionally reliable barrier against leakage in the most severe service conditions.

At Kaxite Seals, with decades of specialization in high-performance sealing solutions, we engineer ring joint gaskets that set the benchmark for safety, durability, and performance. Our commitment is to provide sealing components that not only meet but exceed the stringent requirements of global standards and client specifications.

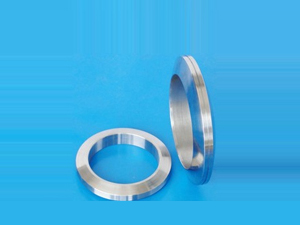

Understanding Ring Joint Gasket Design and Function

A ring joint gasket is a solid metal ring with an oval or octagonal cross-section. It is designed to fit into a machined groove in the flange faces of both mating flanges (RTJ flanges). When the flanges are bolted together, the gasket is compressed into the groove, creating two continuous lines of contact and forming a high-integrity seal. The primary sealing action is achieved through the plastic deformation of the gasket's raised contact points, which flow into any micro-imperfections in the flange groove, resulting in a leak-tight seal.

Key Advantages of Ring Joint Gaskets

• Superior Leak Tightness: Provides a hermetic seal suitable for toxic, flammable, and expensive fluids under high pressure.
• High-Pressure and High-Temperature Resilience: Capable of performing in services exceeding 25,000 psi and temperatures from cryogenic to over 1000°F (538°C).
• Reusability: Well-maintained ring joints can often be reused several times, offering long-term cost efficiency.
• Self-Energizing Seal: Internal system pressure acts to further enhance the sealing force, improving performance as pressure increases.
• Blowout Resistance: The confined groove design mechanically locks the gasket in place, preventing blowout under sudden pressure surges or fire conditions.

Kaxite Seals Ring Joint Gasket Product Specifications

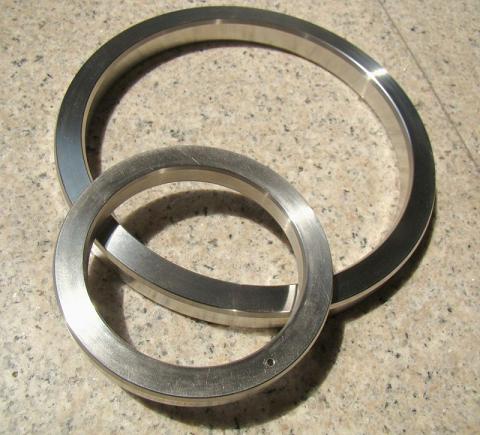

Kaxite Seals manufactures ring joint gaskets in strict compliance with ASME B16.20 and API 6A standards. We offer a comprehensive range to suit all standard RTJ flange profiles (R, RX, BX) and sizes.

1. Material Grades and Specifications

Material selection is critical for corrosion resistance, temperature capability, and mechanical strength. Our standard offerings include:

• Soft Iron (ASTM A105): Standard for general service, offering good ductility.
• Low Carbon Steel: A cost-effective option for many non-corrosive applications.
• Stainless Steel 304/304L, 316/316L: For excellent corrosion resistance in a wide range of chemical services.
• Alloy 20: Superior resistance to sulfuric acid and other aggressive chemicals.
• Monel 400 & K500: Exceptional resistance to seawater, hydrofluoric acid, and alkalis.
• Inconel 600 & 625: For extreme high-temperature and high-pressure corrosive environments.
• Titanium: For highly corrosive chloride and oxidizing acid services.
• Duplex & Super Duplex Stainless Steels: Combining high strength with excellent pitting and stress corrosion cracking resistance.

2. Ring Joint Gasket Types and Profiles

Kaxite Seals provides all standard profiles to match your flange specifications.

3. Dimensional Data Table (Sample - R45 for 2" 1500# Flange)

*Note: This is a representative sample. Always consult Kaxite Seals for the exact dimensional chart corresponding to your ring number and specification.

Frequently Asked Questions (FAQ) About Ring Joint Gaskets

Q: What is the difference between oval and octagonal ring joint gaskets?

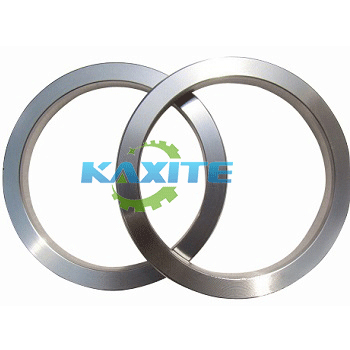

A: The key difference lies in their sealing mechanics and application. Oval ring gaskets require higher bolt loads to achieve initial seal and are more susceptible to over-compression. Octagonal ring gaskets have flat seating surfaces that provide a more controlled contact area, require lower bolt loads, offer better sealing at lower pressures, and are generally preferred for their reliability and reusability. Most modern specifications favor octagonal rings.

Q: How do I select the correct material grade for my application?

A: Material selection depends on three primary factors: the fluid media (corrosivity, presence of H2S, CO2), operating temperature, and pressure. Always consult the process piping specifications or material selection diagrams (MSDs). For sour service (containing H2S), materials must comply with NACE MR0175/ISO 15156 standards. Kaxite Seals' technical team can provide expert guidance based on your specific service conditions.

Q: Can a ring joint gasket be reused?

A: Reuse is possible but must be approached with caution. A used gasket must be carefully inspected for any signs of corrosion, scratches, grooves, or deformation. The gasket's height should be measured at multiple points; if it is compressed beyond the dimensional tolerances specified in standards like API 6A, it must be replaced. Reusing a damaged or over-compressed gasket can lead to catastrophic seal failure. For critical services, replacement is always the safest policy.

Q: What are the proper installation and tightening procedures for an RTJ flange?

A: Correct installation is critical. First, ensure the flange grooves and the gasket are clean, dry, and free of debris. Lightly lubricate the gasket with a suitable anti-seize compound (approved for the service). Carefully position the gasket in the groove. Use calibrated torque wrenches and follow a cross-pattern bolting sequence (star pattern) in multiple incremental steps (e.g., 30%, 60%, 100% of final torque) to ensure even compression. Always adhere to the bolt torque values specified by the flange manufacturer or engineering standards.

Q: What does "self-energizing" mean in the context of RX and BX ring gaskets?

A: A self-energizing or pressure-energized seal means that the internal pressure of the system itself assists in maintaining the sealing force. In RX and BX designs, the system pressure acts on the inner diameter of the gasket, causing it to expand slightly and push more forcefully against the flange groove walls. This characteristic makes them exceptionally effective for high-pressure and cycling pressure applications, as the seal actually improves with increased system pressure.

Q: How does Kaxite Seals ensure the quality of its ring joint gaskets?

A: At Kaxite Seals, quality is integral to our manufacturing process. We start with certified raw materials. Our CNC machining guarantees precise dimensional accuracy to ASME/API standards. We perform 100% dimensional inspection and surface finish checks. For critical applications, we provide Material Test Certificates (MTCs) per EN 10204 3.1, and can arrange for third-party inspection. Our quality management system is designed to deliver traceable, reliable, and compliant products for every order.
