A Guide to PTFE Gaskets: Superior Sealing Solutions for Demanding Industries

For decades, PTFE (Polytetrafluoroethylene) has stood as the benchmark for high-performance sealing in the most challenging environments. At Kaxite Seals, we specialize in engineering and manufacturing premium PTFE Gaskets that deliver unparalleled reliability, chemical resistance, and longevity. As a material, PTFE offers a unique combination of properties that make it indispensable across chemical processing, pharmaceuticals, food and beverage, and semiconductor manufacturing. This guide delves into the technical specifications, types, and applications of PTFE gaskets, providing the detailed information engineers and procurement specialists need to make informed decisions.

What Makes PTFE the Ideal Gasketing Material?

PTFE is a synthetic fluoropolymer celebrated for its exceptional inertness and broad operational range. Unlike many elastomers, PTFE maintains its integrity where others fail. Its molecular structure grants it a set of super-material properties:

• Extreme Chemical Resistance: Inert to nearly all industrial chemicals, solvents, and acids, making it perfect for aggressive media.
• Wide Temperature Range: Performs consistently from cryogenic temperatures (-200°C / -328°F) up to +260°C (+500°F).
• Excellent Anti-Stick Properties: The lowest coefficient of friction of any solid material, preventing adhesion and ensuring easy cleanability.
• Ultra-Low Permeability: Provides an exceptional barrier against gases and liquids.
• Excellent Dielectric Properties: A superb electrical insulator.

Technical Specifications of Kaxite Seals PTFE Gaskets

Our Kaxite Seals PTFE gaskets are manufactured to the highest purity and consistency standards. Below are the key material properties and performance data.

Types of PTFE Gaskets We Offer

Kaxite Seals provides a comprehensive range of PTFE gasket types to suit specific application requirements, pressures, and flange types.

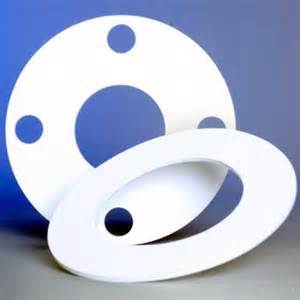

• Virgin PTFE Gaskets: Made from 100% pure PTFE resin. Used in ultra-pure applications like semiconductor and pharmaceutical manufacturing where contamination is unacceptable.

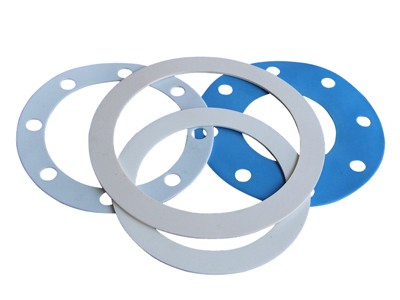

• Reinforced PTFE Gaskets (e.g., with Glass, Bronze, Stainless Steel): These gaskets incorporate fillers to improve mechanical properties such as creep resistance, hardness, and thermal conductivity, making them suitable for higher pressure applications.

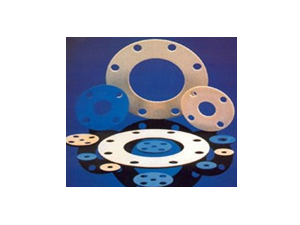

• Expanded PTFE (ePTFE) Gaskets: A soft, conformable, and highly compressible form of PTFE. Ideal for irregular surfaces, low bolt load applications, and as a superior replacement for compressed asbestos sheets.

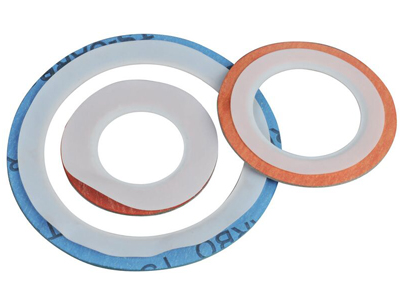

• PTFE Enveloped Gaskets: Feature a corrosive-resistant PTFE envelope (jacket) over an elastomeric or compressible filler core (like EPDM or CAF). This combines the chemical resistance of PTFE with the resilience of the core material.
• Skived PTFE Tape: Thin sheets of PTFE used for creating custom gaskets on-site or for wrapping existing gaskets to enhance chemical resistance.

Frequently Asked Questions (FAQ) About PTFE Gaskets

Q: How do I choose between Virgin PTFE and Reinforced PTFE for my application?
A: The choice depends on your primary need. Use Virgin PTFE when you require maximum chemical purity and resistance, especially in food, pharma, or semiconductor processes. Opt for Reinforced PTFE (with glass fiber, carbon, or bronze) when your application involves higher flange pressures, frequent thermal cycling, or you need improved creep resistance and reduced cold flow. The fillers enhance dimensional stability under load.

Q: What is "cold flow" or "creep" in PTFE gaskets, and how is it managed?
A: Cold flow refers to PTFE's tendency to deform slowly under sustained pressure and temperature, which can lead to a loss of bolt load and potential leakage. It is managed by: 1) Using reinforced PTFE grades with fillers that inhibit creep. 2) Ensuring proper flange design with adequate gasket stress. 3) Following correct installation procedures with controlled bolt torque and potential re-torquing after initial heat cycles. Kaxite Seals engineers can recommend the optimal material grade to minimize creep for your specific conditions.

Q: Can PTFE gaskets be used for both vacuum and high-pressure services?
A: Yes, but the gasket type must be selected carefully. For high vacuum applications, Virgin or specially processed PTFE is excellent due to its extremely low outgassing properties. For high-pressure services (typically above 150 psi / 10 bar), Reinforced PTFE gaskets are necessary to withstand the high compressive loads without excessive cold flow. Always consult pressure-temperature ratings for the specific gasket composition.

Q: How do I install and torque PTFE gaskets correctly?
A: Correct installation is critical. Ensure flanges are clean, aligned, and undamaged. Place the gasket centered on the flange face. Use a calibrated torque wrench and follow a cross-pattern tightening sequence in multiple stages (e.g., 30%, 60%, 100% of final torque) to ensure even compression. Refer to the ASME PCC-1 guidelines or our Kaxite Seals installation datasheet for specific torque values based on gasket type, size, and bolt class.

Q: Are PTFE gaskets suitable for oxygen service?
A: Virgin PTFE is generally acceptable for oxygen service as it is non-combustible and has a high ignition temperature. However, for high-pressure oxygen systems, it is crucial to ensure the PTFE is clean, free of organic contaminants, and approved for such service. Some reinforced grades may not be suitable if the filler materials are not oxygen-compatible. Always specify "oxygen service" when inquiring with your supplier.

Q: What are the key advantages of choosing Kaxite Seals for PTFE gaskets?
A: Kaxite Seals distinguishes itself through material expertise, precision manufacturing, and technical support. We use high-quality, traceable PTFE resins, employ CNC cutting and skiving for precise dimensions, and offer extensive customization (colors for coding, special shapes, reinforced variants). Our technical team provides support from material selection to installation guidance, ensuring optimal sealing performance and longevity in your application.
