Understanding Graphite Sheet: The Ultimate Guide for High-Performance Industries
In the demanding world of modern engineering, finding materials that offer a perfect balance of thermal management, electrical conductivity, and reliable sealing is a constant challenge. Among the elite materials that meet these rigorous demands, graphite sheet stands out. Engineered for excellence, Graphite Sheet, particularly from industry leaders like Kaxite Seals, represents a pinnacle of material science. This comprehensive guide delves into the specifications, applications, and advantages of this versatile material, providing the detailed information engineers and procurement specialists need.

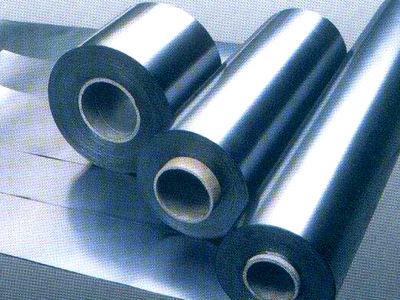

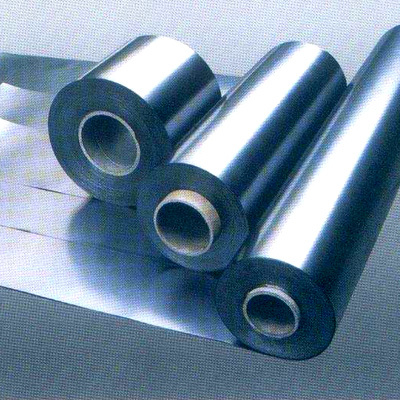

What is a Graphite Sheet?
A Graphite Sheet is a highly flexible, compressible material manufactured from pure graphite. Through an advanced manufacturing process, natural graphite is exfoliated and recompressed without binders, creating a sheet with exceptional properties. It functions as an outstanding thermal interface material (TIM), a conductive gasket, and a high-temperature seal. Unlike traditional materials, it maintains its integrity and performance across a vast temperature range and under intense pressure.
Key Technical Parameters of Kaxite Seals Graphite Sheets
To truly appreciate the capability of Graphite Sheet, one must examine its core technical parameters. Kaxite Seals employs stringent quality control to ensure each sheet delivers consistent, top-tier performance. Below is a detailed breakdown of our standard specifications.
Primary Material Properties
- Base Material: 99.9% Pure Expanded Graphite (Flexible Graphite)
- Density Range: 0.8 g/cm³ to 1.3 g/cm³ (customizable based on application)
- Operating Temperature: -240°C to 3000°C (in inert atmospheres); -240°C to 450°C (in oxidizing atmospheres with limited exposure)
- Thermal Conductivity (Through-plane): 5 to 150 W/m·K (depending on density and orientation)
- Electrical Conductivity: 1.0 x 10⁴ to 2.0 x 10⁴ S/m (excellent for EMI/RFI shielding)
- Compressibility: 15% to 50% (under typical sealing pressures)
- Recovery (Resilience): 10% to 25%
- Creep Relaxation: < 10% under standard conditions
- Chemical Compatibility: Highly resistant to most acids, alkalis, solvents, and hydrocarbons. Inert to many corrosive media.
- Flammability: Non-flammable, will not melt or drip.
Standard Product Dimensions & Specifications Table
| Product Grade | Standard Thickness (mm) | Standard Sheet Size (mm) | Density (g/cm³) | Primary Application Focus |
|---|---|---|---|---|
| KX-GS100 | 0.15, 0.25, 0.5, 1.0 | 500 x 600 / 1000 x 1200 | 1.0 ± 0.1 | General-purpose gasketing, low-load thermal interfaces |
| KX-GS200 | 0.5, 1.0, 1.5, 2.0 | 500 x 600 / 1000 x 1200 | 1.1 ± 0.1 | High-temperature flanges, furnace seals, heat exchangers |
| KX-GS300 | 0.25, 0.4, 0.8, 1.2 | 500 x 600 / 600 x 600 | 1.2 ± 0.1 | Fuel cell stacks, high conductivity thermal management |
| KX-GS400 (Adhesive-backed) | 0.13, 0.2, 0.25, 0.5 | 300 x 300 / 500 x 500 | 0.9 ± 0.1 | Electronics cooling (CPU, GPU, LED), EMI shielding gaskets |

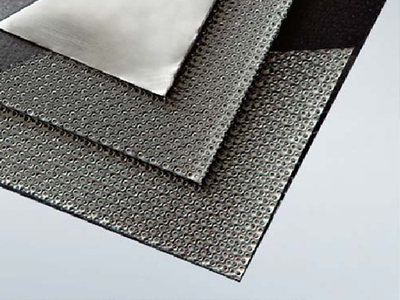

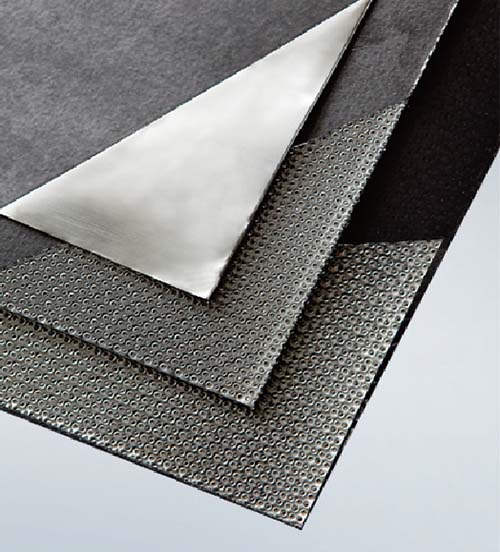

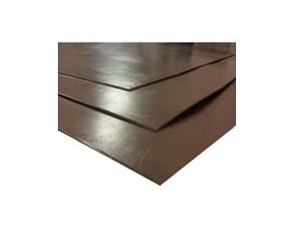

| KX-GS500 (Reinforced) | 1.5, 2.0, 3.0 | 1000 x 1200 / 1500 x 1500 | 1.25 ± 0.1 | Aggressive chemical service, high bolt load applications |
Performance Advantages of Kaxite Seals Graphite Sheets
Choosing Kaxite Seals Graphite Sheet provides a multitude of operational benefits that translate directly into reliability, efficiency, and cost savings.
- Superior Thermal Management: The anisotropic structure provides excellent through-plane thermal conductivity, efficiently moving heat away from critical components in electronics, power systems, and industrial machinery.
- Exceptional Sealing Performance: The material conforms to surface imperfections, creating a leak-tight seal against gases and liquids, even at extreme temperatures where elastomers fail.
- Chemical Inertness and Purity: The 99.9% purity ensures no contamination of process fluids, making it ideal for semiconductor manufacturing, food processing, and pharmaceutical applications.
- Long-Term Stability: Resists aging, hardening, and cracking. It exhibits minimal creep relaxation, maintaining bolt load and seal integrity over long service periods.
- Electrical Conductivity: Provides effective EMI/RFI shielding and grounding paths in electronic enclosures and telecommunications equipment.
- Easy Fabrication and Installation: Can be easily die-cut, stamped, or laser-cut into complex gasket shapes. It is clean to handle and requires no special surface preparation beyond cleanliness.
Frequently Asked Questions (FAQ) About Graphite Sheets
Q: What is the main difference between a graphite sheet and a traditional rubber gasket?
A: The differences are profound. Traditional rubber gaskets have a limited temperature range (typically -50°C to 200°C), degrade over time due to compression set and chemical exposure, and are thermal insulators. A graphite sheet operates from cryogenic temperatures up to 3000°C in inert environments, maintains excellent creep resistance, is chemically inert to most media, and is both thermally and electrically conductive. For high-temperature or corrosive applications, graphite sheets are vastly superior.
Q: Can Kaxite Seals graphite sheets be used in food-grade or pharmaceutical applications?
A: Absolutely. Our graphite sheets are manufactured from 99.9% pure graphite without binders or additives. They are compliant with relevant FDA regulations for indirect food contact and are suitable for sterile pharmaceutical processes where material purity and non-contamination are paramount. Certifications and material data sheets are available upon request.
Q: How do I select the correct thickness and density for my application?
A: Selection depends on three key factors: surface condition, pressure, and function. For rough or uneven surfaces (e.g., cast flanges), a thicker sheet (1.5mm or more) with medium density (1.0-1.1 g/cm³) allows for better conformity. For smooth surfaces and high bolt loads, a thinner, higher-density sheet provides optimal sealing. For primary thermal interface applications, thinner sheets (0.15-0.5mm) with higher density maximize heat transfer. Kaxite Seals' technical team can provide specific guidance based on your design parameters.
Q: Is graphite sheet fragile and difficult to handle?
A: While pure graphite sheets are flexible and can be bent or wrapped, they should not be over-flexed or stretched, as this can cause tearing. They are not "fragile" like ceramic but require sensible handling. For complex installations, we offer reinforced grades (like KX-GS500) with metal or polymer inserts for added tensile strength and easier handling. Die-cutting the sheet into the precise gasket shape before installation greatly simplifies the process.
Q: How does the adhesive-backed graphite sheet perform compared to the standard sheet?
A: Our KX-GS400 series features a pressure-sensitive acrylic or silicone adhesive on one side. This version is specifically designed for electronics assembly. It simplifies installation, eliminates the need for mechanical fastening in TIM applications, and provides a strong bond to heatsinks and components. The thermal performance is slightly modified by the adhesive layer but remains excellent. The non-adhesive side retains all the standard graphite sheet properties. It is not intended for high-pressure flange sealing.
Q: What are the limitations of graphite sheet material?
A: The primary limitation is its performance in strong oxidizing atmospheres at sustained high temperatures (above 450°C). While it can withstand short-term exposure, prolonged operation in open air at high temperatures will lead to gradual oxidation. For such applications, we recommend our specially treated oxidized-resistant grades or consider alternative materials. Additionally, while it has good tensile strength in-plane, its through-plane strength is lower, so it should not be used as a structural load-bearing component.
Q: Can I reuse a graphite sheet gasket after disassembly?
A: Generally, it is not recommended. During initial compression, the graphite sheet conforms to the specific micro-imperfections of the flange faces. Upon disassembly, this tailored conformation is lost. Reusing the gasket may compromise the seal integrity, as it may not re-conform perfectly. For critical applications, always install a new gasket. The cost-effectiveness of graphite sheets lies in their long service life during a single run, not in reusability.
Q: Does Kaxite Seals provide custom fabrication of graphite sheet components?
A: Yes, custom fabrication is a core service at Kaxite Seals. We operate state-of-the-art die-cutting, CNC machining, and laser-cutting equipment. We can supply graphite sheets pre-cut into any shape—complex gaskets, washers, rings, or intricate heat spreaders—with tight tolerances. We can also laminate graphite with metals, apply coatings, or create composite materials to meet unique application challenges. Contact our engineering department with your drawings for a consultation.
Major Industrial Applications
The versatility of Graphite Sheet makes it indispensable across a spectrum of industries.
- Power Generation & Petrochemical: Gaskets for turbine casings, heat exchangers, boiler manways, and refinery flanges handling hot oils, steam, and aggressive chemicals.
- Automotive & Aerospace: Exhaust manifold gaskets, fuel cell stack seals, thermal management in battery packs and power electronics, and engine compartment heat shielding.
- Electronics & Telecommunications: Thermal interface materials for CPUs/GPUs, LED heat sinks, 5G infrastructure cooling, and EMI shielding gaskets for enclosures.
- Semiconductor & Vacuum Furnaces: High-purity seals for CVD/PVD chambers, furnace door seals, and wafer processing equipment where ultra-clean, outgassing-free materials are required.
- Industrial Manufacturing: Seals for pumps, valves, compressors, and reactors in chemical processing, plastics manufacturing, and steel production.
