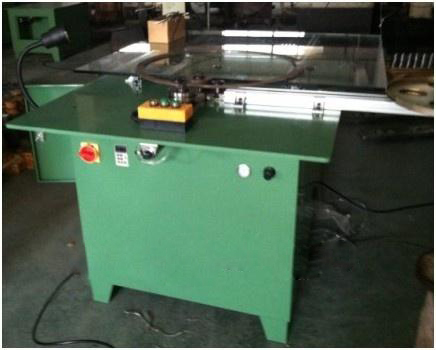

Medium Size Semi-Automatic Winding Machine

Kaxite's Medium Size Semi-Automatic Winding Machine is a versatile tool designed for efficient coil and wire winding. With durable construction and user-friendly controls, it ensures precise, consistent results, saving time and reducing manual effort. Ideal for small workshops, electronics hobbyists, and DIY enthusiasts, it streamlines projects from repairs to custom creations. Experience the satisfaction of flawless winding and enhanced productivity—upgrade your toolkit with Kaxite today!

Send Inquiry

Product Description

Both manual model and automatic model available.

Specification as following:：
	KXT E1200S Medium size winding machine
STYLE	KXT E1200S-B Manual	KXT E1200S-C Semi-automatic
Producing ability	spiral wound gasket with or without inner ring	spiral wound gasket with or without inner ring
Special function	any shape of SWG	any shape of SWG
SWG thickness	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Automatic function	/	PLC size controlling, semi-Automatic spot welding
Maximum gasket OD	1000mm	1000mm
Minimum gasket ID	100mm	100mm
Total power	2.2kw	8kw
Spindle motor power	1.5kw	1.5kw
welder power	/	6kw
Frequency Converter	2.2G	2.2G
PLC	/	xinjie
Power supply voltage	380V/220V for option, 3 phases	380V/220V for option, 3 phases
linear speed	0-800mm/s	0-800mm/s
Air compressor	0.6—0.8 MPA	0.6—0.8 MPA
Machine measurement	16801500920MM	16801500950MM
Machine net weight	280 kg	300 kg
