OFHC Copper Gaskets for CF Flanges

Kaxite's OFHC Copper Gaskets for CF Flanges provide superior vacuum sealing with high purity copper for reliable performance in critical applications. Ideal for lab and industrial settings, they ensure leak-free connections, enhancing safety and efficiency by solving common flange sealing issues. Their durability and easy installation set them apart, offering lasting peace of mind for professionals.

Send Inquiry

Product Description

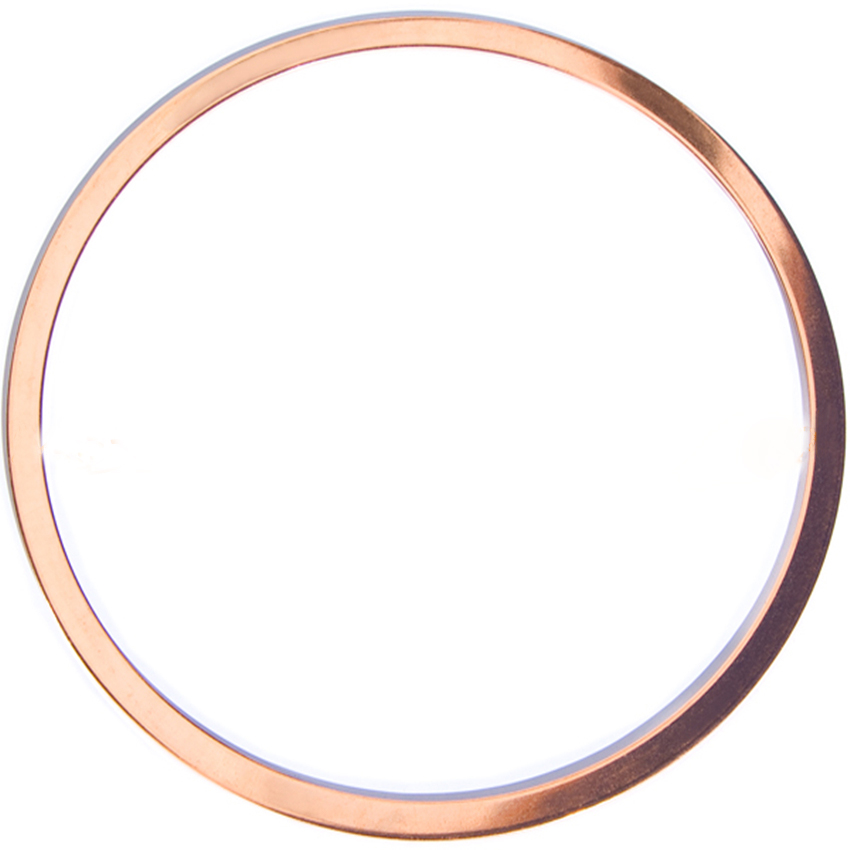

To make a leak tight UHV seal between two conflat flanges, a gasket is required. OFHC (oxygen free high conductivity) copper is normally used as this sealing material as it is very clean, can easily be formed to shape, has a wide temperature range, and has a low outgassing rate.

Type	A	B	Oxygen-free Copper
			Oxygen-free Copper
			Order no.	weight /kg
16	21.3	16.2	7355	0.01
25	35	25.6	7356	0.01
35	48.1	36.8	7357	0.02
50	61.6	52	7358	0.02
63	82.4	63.6	7359	0.05
80	99	82	7360	0.07
100	120.5	102	7361	0.07
150	171.3	152.5	7362	0.1
200	222.1	203	7363	0.14
250	273.1	254	7364	0.2
