High-Quality Aramid Fiber Packing Manufacturer in China for Sale

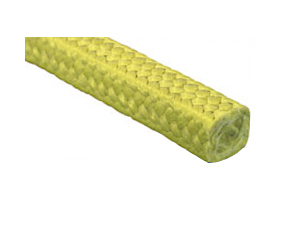

What is Aramid Fiber Packing?

In the demanding world of industrial sealing, where extreme pressures, aggressive chemicals, and high temperatures are commonplace, traditional packing materials often fall short. This is where aramid fiber packing establishes its dominance. This high-performance sealing solution is engineered from synthetic aramid fibers, renowned for their exceptional strength, thermal stability, and chemical resistance. Unlike conventional materials like asbestos or flax, aramid fiber braided packing offers a superior balance of durability and sealing efficiency, making it an indispensable component in modern fluid handling systems. At Kaxite Seals, we specialize in manufacturing premium-grade aramid packing that meets the rigorous demands of industries worldwide, ensuring leak-free operation and extended service life for your critical equipment.

The core of this material lies in the unique molecular structure of aramid (aromatic polyamide) fibers, such as the well-known Kevlar®. These fibers provide an unparalleled combination of properties that are essential for effective dynamic and static sealing. When braided into packing rings and infused with appropriate lubricants or PTFE, the result is a robust, flexible seal capable of withstanding the harshest operating conditions. From chemical processing pumps to steam valves and boiler feed pumps, aramid fiber packing from Kaxite Seals delivers reliable performance where failure is not an option.

Key Features and Advantages of Kaxite Aramid Fiber Packing

Choosing Kaxite Seals' aramid fiber packing means investing in reliability and operational efficiency. Our product is meticulously designed to provide a host of benefits that translate into lower maintenance costs and reduced downtime.

• Exceptional Thermal Stability: Maintains structural integrity and sealing capability at continuous temperatures up to 550°F (288°C) and short-term peaks even higher, making it ideal for steam and hot fluid applications.
• Outstanding Chemical Resistance: Highly resistant to a wide range of chemicals, including acids, alkalis, hydrocarbons, and solvents, ensuring longevity in corrosive environments.
• Superior Strength and Abrasion Resistance: The inherent high tensile strength of aramid fibers provides excellent resistance to wear, shaft fretting, and extrusion, even under high shaft speeds and pressures.
• Low Coefficient of Friction: When impregnated with PTFE or high-grade lubricants, it exhibits low friction, reducing power consumption and minimizing shaft or sleeve wear.
• Non-Asbestos and Environmentally Friendly: A safe, modern alternative to asbestos-based packings, complying with global health and safety regulations.
• Excellent Dimensional Stability: Low creep and relaxation properties ensure the packing maintains a consistent seal over long periods without requiring frequent re-tightening.
• Flexibility and Conformability: Easily conforms to the stuffing box and shaft/sleeve, facilitating easier installation and effective sealing on slightly worn equipment.

Technical Specifications & Product Parameters

To ensure optimal selection and performance, below are the detailed technical specifications for standard Kaxite Seals aramid fiber packing. We also offer custom formulations to meet specific application requirements.

Material Composition & Construction

Performance Data Table

Standard Available Sizes (Kaxite Seals)

Note: Die-molded rings are available in all standard sizes and can be custom-ordered to specific ID/OD dimensions. Other cross-sectional shapes (round, rectangular) available upon request.

Frequently Asked Questions (FAQ) About Aramid Fiber Packing

Q: What is the main difference between aramid fiber packing and graphite packing?

A: While both are used for high-temperature sealing, they differ fundamentally. Aramid fiber packing is braided from synthetic fibers, offering extremely high tensile strength, excellent abrasion resistance, and good chemical resistance. It is more resilient and suitable for dynamic applications with shaft movement. Graphite foil or filament packing is made from pure graphite, offering superior thermal conductivity and excellent chemical inertness but is generally softer and less abrasion-resistant. Aramid is often chosen for its mechanical durability, while graphite is preferred for extreme temperatures and highly corrosive media where strength is less critical.

Q: Can Kaxite aramid packing be used in food and pharmaceutical applications?

A: Standard aramid fiber packing with PTFE impregnation is generally not recommended for direct contact in food (FDA) or pharmaceutical (USP Class VI) applications unless specifically certified. However, Kaxite Seals can provide specialized grades manufactured with FDA-compliant lubricants and processing aids upon request. It is crucial to consult with our technical team to specify the exact media, temperature, and regulatory requirements for your application.

Q: How do I properly install and break-in aramid fiber packing?

A: Correct installation is key to performance and longevity. Clean the stuffing box and shaft thoroughly. Cut packing rings precisely using a mandrel or by wrapping around the shaft (use a sharp knife, never scissors). Stagger the ring joints by 90 degrees. Install rings one at a time, seating each firmly using a stuffing tool. For pump shafts, initial gland finger-tightening should allow slight leakage. Start the equipment and gradually tighten the gland follower in 1/4-turn increments over 15-30 minute intervals until leakage is reduced to a controlled drip (typically 1-60 drops per minute). This break-in period allows the packing to heat up, expand, and form a perfect seal.

Q: Is this packing suitable for high-speed centrifugal pumps?

A: Yes, Kaxite's aramid fiber packing, especially grades with a high-content PTFE or advanced polymer lubricant, is an excellent choice for many centrifugal pump applications. Its high strength prevents extrusion, and its low friction properties minimize heat generation and shaft wear at speeds up to 25 m/s. For the highest speed applications, ensuring adequate flush/cooling and selecting the correct size and braid style (often a tighter, interlocked braid) is critical. Our engineers can help select the optimal grade.

Q: How does it handle abrasive media like slurries?

A: Aramid fiber's inherent abrasion resistance makes it a good candidate for mild to moderately abrasive slurries. The tough fibers resist cutting and wear from particulate matter. For highly abrasive services, Kaxite Seals offers reinforced or composite packings that combine aramid with other resistant materials for enhanced performance. A flush with clean fluid is highly recommended to extend packing life in abrasive conditions.

Q: What is the typical service life I can expect?

A: Service life varies widely based on operating conditions: fluid type, temperature, pressure, shaft speed, surface finish, alignment, and maintenance practices. Under standard conditions in a well-maintained pump (e.g., hot water service), Kaxite aramid packing can last 6 to 18 months or more before requiring adjustment or replacement. In severe chemical or high-temperature service, life may be shorter. Proper installation, break-in, and maintenance are the most significant factors in maximizing service life.

Q: Can I use it to repack a leaking valve?

A: Absolutely. Aramid fiber packing is one of the most common and reliable choices for repacking gate, globe, and control valves handling steam, chemicals, or hot oils. Its flexibility allows it to conform to valve stems, and its temperature/chemical resistance ensures long-term sealing. Ensure the old packing is completely removed, the stem is clean and smooth, and follow the standard installation procedure for valves, which may differ slightly from pump packing.
