Carbon Fiber: The Ultimate Material for Performance and Durability
For decades, Carbon fiber has represented the pinnacle of material science, synonymous with high performance, incredible strength, and lightweight design. At Kaxite Seals, we leverage this advanced composite to engineer sealing solutions that outperform traditional materials in the most demanding applications. But what exactly is carbon fiber, and why has it become the material of choice for industries ranging from aerospace to high-performance automotive and beyond? This guide delves deep into the properties of carbon fiber and showcases how Kaxite Seals incorporates it into superior, reliable products.

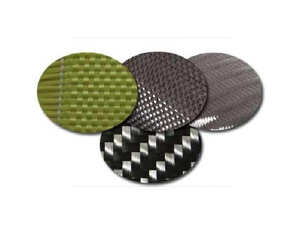

Carbon fiber is a polymer, often known as graphite fiber. It is composed of long, thin strands of carbon atoms bonded together in a crystalline alignment, which provides exceptional strength-to-weight ratio—stronger than steel yet significantly lighter. These fibers are typically woven into a fabric and combined with a resin (like epoxy) to form a rigid and durable composite material. This process allows engineers to tailor the strength, stiffness, and conductivity of the final product to meet specific needs.
Key Properties and Advantages of Carbon Fiber
- Exceptional Strength-to-Weight Ratio: Carbon fiber composites offer tensile strength superior to many metals at a fraction of the weight, enabling energy-efficient and high-performance designs.
- High Stiffness (Modulus of Elasticity): It resists deformation under load, maintaining structural integrity under high stress, a critical factor for precision components.
- Low Thermal Expansion: Carbon fiber exhibits minimal expansion or contraction with temperature fluctuations, ensuring dimensional stability in varying environments.
- Excellent Fatigue Resistance: Unlike metals, carbon fiber composites withstand repetitive stress cycles with a much higher tolerance, leading to longer service life.
- Chemical Resistance: When properly coated with specific resins, it demonstrates strong resistance to corrosion from chemicals, fuels, and solvents.
- Electrically Conductive: The carbon content allows for electrical conductivity, which can be advantageous for applications requiring static dissipation or EMI shielding.
- X-Ray Translucency: It is relatively transparent to X-rays, making it valuable in medical and security imaging equipment.
Kaxite Seals Carbon Fiber Composite Product Parameters
Kaxite Seals specializes in integrating carbon fiber into high-performance sealing components. Our proprietary formulations combine carbon fiber with advanced polymer matrices to create seals that excel where others fail. Below are the detailed specifications for our flagship carbon fiber-reinforced sealing series.
| Property | Test Method | Typical Value | Units | Advantage for Sealing |
|---|---|---|---|---|
| Tensile Strength | ASTM D638 | 320 - 380 | MPa | Withstands high pressure and installation stress without tearing. |
| Compression Set (22 hrs @ 200°C) | ASTM D395 | 10 - 15 | % | Excellent recovery, maintains seal force over long periods under compression. |
| Continuous Service Temperature | - | -50 to +280 | °C | Performs reliably in extreme cold and high-heat environments. |
| Coefficient of Thermal Expansion | ASTM E831 | 2.5 x 10-6 | K-1 | Minimal dimensional change with temperature, preventing seal leakage. |
| Thermal Conductivity | ASTM E1461 | 15 - 25 | W/m·K | Helps dissipate heat from the sealing interface, prolonging life. |
| Chemical Resistance | ASTM D471 (Fuel Immersion) | Volume Swell < 5% | - | Superior resistance to oils, fuels, hydraulic fluids, and many solvents. |
| Friction Coefficient (Dynamic) | ASTM D1894 | 0.08 - 0.12 | - | Low friction reduces wear and power loss in dynamic applications. |
| Product Form | Standard Shapes | Reinforcement Fiber Type | Standard Color | Primary Applications |
|---|---|---|---|---|
| O-Rings | AS568, Metric Sizes | Chopped Carbon Fiber / Continuous Strand | Black | High-temp engine seals, aerospace hydraulics, chemical processing pumps. |
| Gaskets & Sheets | Custom Die-Cut, Sheet Stock (up to 5mm thick) | Woven Carbon Fabric | Black | Flange gaskets, heat shields, insulating seals in electronics. |
| Rod & Tube | Round Rod (3mm-50mm dia), Custom Tubing | Unidirectional Carbon Fiber | Black | Wear sleeves, bushings, structural spacers, custom machined seal components. |
| Molded Components | Custom Geometry per Print | Custom Blend (Chopped & Fabric) | Black | Complex seal housings, valve seats, specialized industrial seals. |
Carbon Fiber in Sealing Technology: The Kaxite Seals Advantage
Incorporating carbon fiber into seals is not merely about adding a premium material; it's about solving engineering challenges. Kaxite Seals' expertise lies in optimizing the matrix-resin system that binds the carbon fibers. This ensures the composite delivers not just strength, but the necessary elasticity, thermal stability, and chemical compatibility for a perfect seal.
- For Dynamic Seals: Our low-friction formulations reduce stick-slip and wear on shafts, extending the life of both the seal and the mating hardware.
- For Static Seals: The near-zero creep and exceptional compression set resistance guarantee a leak-tight seal remains intact for the long term, even under bolt relaxation.
- In Harsh Environments: Whether facing aggressive chemicals, temperature extremes, or constant thermal cycling, Kaxite carbon fiber seals maintain their properties where traditional elastomers degrade.
Carbon Fiber FAQ: Your Questions Answered
Q: Is carbon fiber brittle and prone to cracking?
A: While raw carbon fibers are stiff, the composite material created by Kaxite Seals is engineered for toughness. The polymer matrix absorbs energy and distributes stress, preventing catastrophic brittle failure. Our seals are designed to withstand significant deflection and impact without cracking under normal service conditions.
Q: How does carbon fiber compare to glass fiber or aramid (Kevlar) in seals?
A: Each reinforcing fiber offers different benefits. Carbon fiber provides the highest stiffness and strength-to-weight ratio, along with superior fatigue resistance and thermal conductivity. Glass fiber is more economical and offers good strength but is less stiff and has a higher density. Aramid fiber offers excellent toughness and impact resistance but absorbs moisture and has lower compressive strength. Kaxite Seals selects carbon fiber for applications demanding maximum performance, thermal management, and longevity.
Q: Can carbon fiber seals be used in food-grade or potable water applications?
A: Standard carbon fiber composites are not typically certified for direct food contact. However, Kaxite Seals can develop formulations using specific, FDA-listed resin systems and coatings to create seals suitable for incidental contact or specific industrial food processing applications. It is crucial to consult with our engineering team for such requirements.
Q: Are Kaxite carbon fiber seals electrically conductive? Could this cause galvanic corrosion?
A: Yes, standard carbon fiber composites are electrically conductive. This is beneficial for grounding or EMI shielding. However, it can pose a risk of galvanic corrosion if placed in direct, wet contact with dissimilar metals like aluminum. Kaxite Seals can engineer solutions with insulating layers or select resin systems to reduce conductivity where necessary, or provide design guidance to isolate the seal from the metal surface.
Q: What is the lead time for custom carbon fiber seal components from Kaxite Seals?
A: Lead times vary based on complexity and order volume. For standard O-ring sizes from stock material, lead time can be as short as 2-3 weeks. For fully custom molded parts requiring new tooling, the process typically takes 8-12 weeks for initial samples. Our project management team works closely with clients to provide accurate timelines and expedite orders when possible.
Q: How do I install and handle carbon fiber seals to avoid damage?
A: While durable, carbon fiber seals require careful handling. Use proper tools—avoid sharp edges or metal picks that can scratch the sealing surface. Ensure the housing and shaft are clean, deburred, and lubricated with a compatible medium. For tight interferences, use a tapered installation tool. Always follow Kaxite Seals' specific installation guidelines provided with the product.
Applications of Kaxite Carbon Fiber Seals
The unique property profile of our carbon fiber composites makes them ideal for frontier industries.
- Aerospace & Defense: Engine seals, hydraulic system components, UAV structures, and thermal insulation gaskets where weight savings and reliability are non-negotiable.
- High-Performance Automotive & Racing: Engine and transmission seals, turbocharger components, and thermal management gaskets that endure extreme heat and pressure.
- Oil & Gas (Downhole & Subsea): Seals for logging tools, blow-out preventers, and subsea connectors requiring long-term stability under high pressure and corrosive fluids.
- Industrial Machinery: High-wear bushings, bearing seals in high-speed pumps, and compressor components where reduced friction and long maintenance intervals are critical.
- Renewable Energy: Seals and structural elements in wind turbine gearboxes and hydrogen fuel cell stacks, where chemical resistance and durability are paramount.
