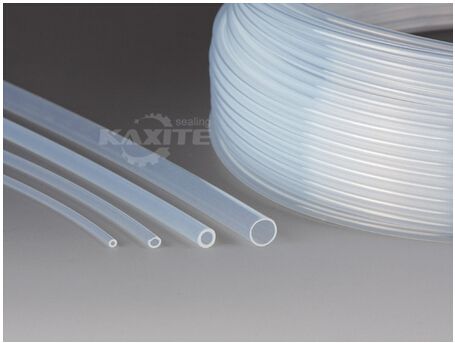

Premium PTFE Tubing for Demanding Industrial Applications

In the complex landscape of industrial components, where chemical resistance, thermal stability, and purity are non-negotiable, PTFE Tubing stands as a critical solution. Kaxite Seals, leveraging decades of material science expertise, engineers high-performance Polytetrafluoroethylene tubing that sets the benchmark for reliability in extreme environments. Our tubing is not just a component; it's a safeguard for your processes, ensuring integrity from pharmaceutical transfer lines to aggressive chemical handling and high-temperature wiring conduits.

Constructed from 100% virgin PTFE resin, our tubing offers an unparalleled combination of properties: it is chemically inert to virtually all industrial chemicals, operates across a vast temperature spectrum, and exhibits an extremely low coefficient of friction. This makes it the definitive choice for applications where failure is not an option. At Kaxite Seals, we precision-manufacture our tubing to stringent tolerances, ensuring consistent performance, batch after batch.

Key Specifications & Technical Parameters of Kaxite Seals PTFE Tubing

Understanding the precise specifications of PTFE tubing is essential for proper selection and integration into your system. Below are the core parameters that define the performance envelope of our standard tubing offerings.

Material & Physical Properties

• Base Material: 100% Virgin PTFE (Polytetrafluoroethylene) – No reprocessed or filled content.
• Color: Natural White (Opaque). Custom colors available upon request.
• Operating Temperature Range: -200°C to +260°C (-328°F to +500°F).
• Melting Point: Approximately 327°C (621°F).
• Density: 2.15 - 2.20 g/cm³.
• Surface Texture: Smooth, non-stick, low-friction surface.
• FDA Compliance: Selected grades are compliant with FDA regulations 21 CFR 177.1550 for food contact applications.
• USP Class VI: Available grades comply with USP Class VI standards for medical and pharmaceutical use.

Performance Characteristics

• Chemical Resistance: Inert to almost all industrial chemicals, solvents, and acids, including strong oxidizers like concentrated sulfuric acid and aqua regia.
• Dielectric Strength: Excellent insulator; typical value > 400 kV/cm.
• Coefficient of Friction: Extremely low (typically 0.05 – 0.10), making it self-lubricating.
• Flammability: Non-flammable (UL94 V-0 rated).
• Weathering & UV Resistance: Excellent long-term stability with minimal degradation.
• Permeability: Very low gas and vapor transmission rates.

Detailed Dimensional Data & Pressure Ratings

For engineering and procurement clarity, refer to the following table outlining standard sizes and capabilities. Kaxite Seals offers extensive customization outside these ranges.

*Pressure ratings decrease at elevated temperatures. Consult Kaxite Seals engineering for high-temperature pressure derating charts.

FAQ: Your Questions on PTFE Tubing Answered by Kaxite Seals

General & Application Questions

Q: What exactly is PTFE, and why is it used for tubing?

A: PTFE, or Polytetrafluoroethylene, is a synthetic fluoropolymer renowned for its exceptional chemical inertness, wide service temperature range, and extremely low friction. These properties make PTFE tubing ideal for conveying aggressive chemicals, high-purity fluids, and gases, or for use as insulating sleeving in electrical and thermal applications where other materials would fail.

Q: What are the primary industries and applications for your PTFE tubing?

A: Kaxite Seals PTFE tubing is critical in numerous sectors. Key applications include: Chemical Processing (transfer lines for acids, solvents, and caustics), Pharmaceutical & Biotech (fluid transfer in fermentation, chromatography, and WFI systems), Food & Beverage (sanitary lines for flavors, colors, and cleaning agents), Semiconductor Manufacturing (ultra-pure chemical delivery and exhaust), Automotive & Aerospace (fuel, oil, and air lines in harsh environments), and Electrical Engineering (high-temperature wire insulation).

Q: Can your PTFE tubing be used for medical applications?

A: Yes. Kaxite Seals offers specific grades of PTFE tubing that are manufactured in a controlled environment and comply with United States Pharmacopeia (USP) Class VI standards for biocompatibility. These tubes are suitable for medical device assemblies, peristaltic pump tubing, and analytical instrument fluid paths. It is crucial to specify your medical or pharmaceutical requirement when inquiring.

Technical & Selection Questions

Q: What is the difference between "Virgin" PTFE and other types?

A: Virgin PTFE is produced directly from pure PTFE polymer resin without any recycled or filler materials. This ensures the highest level of chemical purity, consistent mechanical properties, and optimal performance. Lower-cost alternatives may use reprocessed PTFE, which can contain impurities and have variable performance. Kaxite Seals uses only 100% virgin PTFE for our standard tubing to guarantee reliability.

Q: How do I select the correct size and wall thickness for my pressure application?

A: Selection depends on your system's operating pressure, temperature, and the fluid being conveyed. As a rule, thicker walls handle higher pressures but reduce inner diameter flow. Use the pressure rating table above as a starting point. For dynamic applications (e.g., moving machinery) or pulsating pressures, a significant safety factor should be applied. Our technical team at Kaxite Seals can assist with specific calculations.

Q: Does PTFE tubing have any limitations?

A: While exceptionally versatile, PTFE tubing has considerations: Mechanical Strength: It is a relatively soft material with lower tensile strength compared to metals. It can be cut or damaged by sharp edges. Creep/Relaxation: Under constant stress (like a tight clamp), PTFE can slowly deform (cold flow). Proper fitting design is essential. Permeability: While low, it is not a perfect barrier to certain small gas molecules over long periods. Thermal Expansion: PTFE has a higher coefficient of thermal expansion than metals, which must be accounted for in long, fixed runs.

Installation & Handling Questions

Q: How do I cut and install PTFE tubing without damaging it?

A: Always use a sharp, clean blade. A razor knife or a dedicated tubing cutter works best. Avoid crushing the tube with pliers. Ensure the cut is square to prevent leaks. For connections, use fittings specifically designed for plastic or PTFE tubing (e.g., compression fittings with ferrules). Do not over-tighten, as this can split the tube or induce cold flow. Support the tubing along its run to avoid kinking or stress.

Q: Can Kaxite Seals PTFE tubing be heat-formed or flared?

A: Yes, PTFE is thermoplastic and can be shaped with the application of heat. Using a specialized heating tool, the tubing can be gently heated to make bends or create flares for specific fitting types. However, overheating can degrade the material. We recommend consulting our technical data or support for specific procedures related to our tubing's properties.

Q: How do I clean PTFE tubing?

A: Due to its non-stick, chemically inert nature, PTFE tubing is very easy to clean. For most contaminants, flushing with an appropriate solvent (compatible with PTFE) or hot water and detergent is sufficient. For high-purity applications, protocols involving sequential solvent rinses (e.g., IPA, acetone) followed by drying with clean, oil-free air or nitrogen are standard. Autoclaving is also possible due to PTFE's high-temperature resistance.
