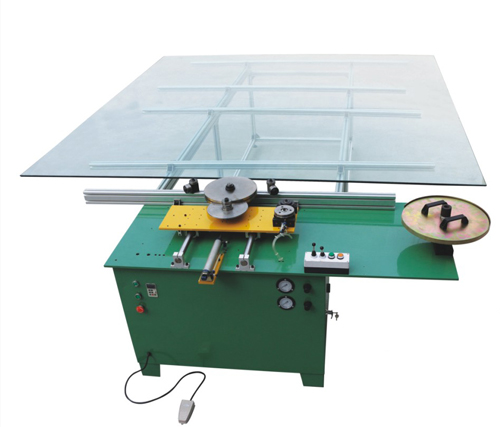

Semi-Automatic Horizontal Big Size Winder

Introducing the Kaxite Semi-Automatic Horizontal Big Size Winder: a robust and efficient solution for winding large materials with ease. This semi-automatic winder offers precision and durability, featuring advanced technology that ensures smooth operation and minimal downtime. Ideal for industrial professionals handling textiles, films, or foils, it simplifies complex tasks and boosts productivity. Users will experience enhanced workflow efficiency and reduced manual effort, solving common winding challenges. Unlike competitors, Kaxite's design combines user-friendly controls with high-capacity performance, making it a standout choice. Elevate your operations today with Kaxite's reliable engineering!

Send Inquiry

Product Description

Specification as following:
STYLE	KXT E2500B Manual winder	KXT E2500C Semi-automatic winder
Producing ability	SWG with or without IR	SWG with or without IR
SWG thickness	4.5mm (also suitable for 3.2mm, 6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option)	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option)
Maximum gasket OD	2500mm or 3200mm	2500mm or 3200mm
Minimum gasket ID	300mm	300mm
Total power	2.2kw	8kw
Spindle motor power	0.75kw	0.75kw
welder power	/	6kw
Power supply	380V/220V for option, 3 phases	380V/220V for option, 3 phases
linear speed	0-800mm/s	0-800mm/s
Air compressor	0.6—0.8 MPA	0.6—0.8 MPA
Frequency Converter	2.2G	2.2G
PLC	/	xinjie
Machine measurement	34002600980mm	34002600980mm
Machine net weight	500kg	550kg
